Introduction
Though the repair is shown on a 2016 Ford F-150, you can use this guide to replace the cabin air filter of your 2015-2017 Ford F-150.
The cabin air filter helps prevent harmful particles, pollen, smog, and dust from entering the cabin of your vehicle. Most cabin air filters need to be replaced about every 15,000 miles, and if you can't remember the last time the filter has been replaced it's probably time for a new one.
It's important to consistently replace your cabin air filter because if the filter becomes clogged it can affect the efficiency of your air conditioning system. Did you know that most automotive shops charge you over double the filter cost? By using this guide you're not only learning a new skill but also saving money!
Make sure the vehicle is powered off and the truck is in park before you begin this repair.
Parts
-
-

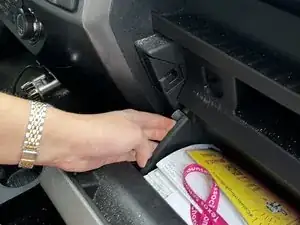

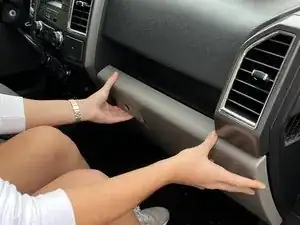

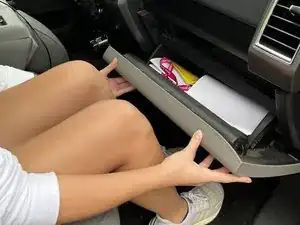

Push in on the latches on the sides of the glove compartment to release it from the dashboard.
-

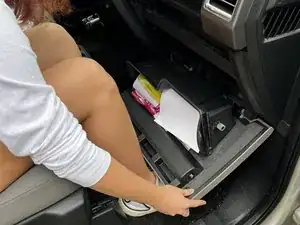

Set it down on the floor of the passenger side footwell.
-
-
-

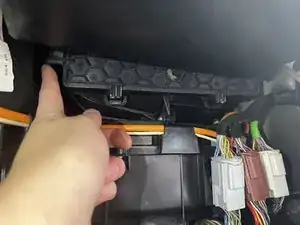

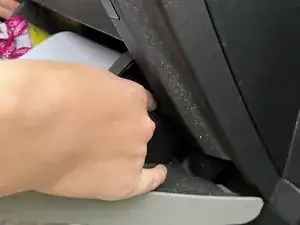

Push forward on the two latches of the honeycomb filter cover.
-

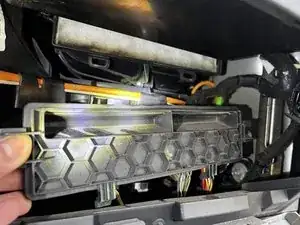

Remove the cover.
-

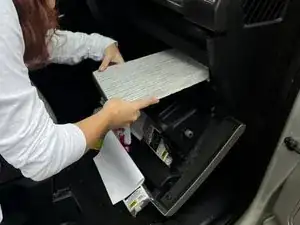

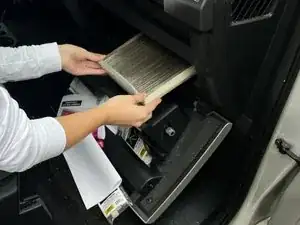

Slide the old filter from the compartment.
-
-
-
Insert the new filter into the compartment with the arrows pointed in the direction indicated.
-
-
-

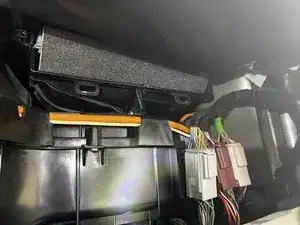

Insert the bottom two latches of the cover into the latch holes.
-
Swing the cover towards the filter and press down on the two side latches until they clip into place.
-
-
-

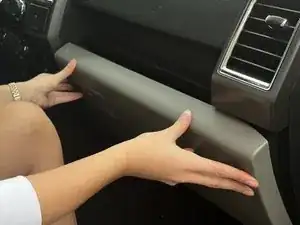

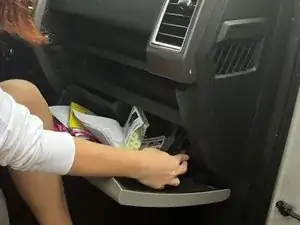

Lift the glove compartment up until it is level with the latch holes.
-
Push the latches on the left and right inward until the latches are secured.
-

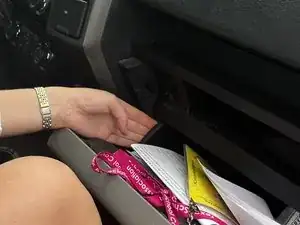

Replace all the contents of the glove compartment.
-
Close the glove compartment.
-
To reassemble your device, follow these instructions in reverse order.
