Vintage Mini Vornado Fan Blade Replacement

Written By: Claire Minahan
  • Comments: 0
Vintage Mini Vornado Fan Blade Replacement

Difficulty

Easy

Steps

6

Time Required

5 minutes

Introduction

This repair guide is for the Vintage Mini Vornado fan. After extended use, the blade on Vintage Mini Vornado fans can wear down and fail to produce a strong air flow. This guide demonstrates how to properly maintain and replace the blade. It is important that the fan is unplugged before starting the repair to avoid any accidents.

  1. B63vbWc5VYyWnkYM
    B63vbWc5VYyWnkYM
    VPEZGY2ZUfMKICVW

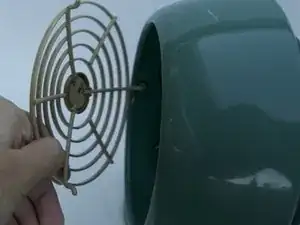

    • Prop the cap out of each hole with a pry tool to remove the blade cap.

    • To remove the blade cap, you will need to pop out three different areas of the cap from the fan. There are three small holes around the perimeter of the fan that the cap is secured into.

  2. O5BQnHQWshSs5UN6

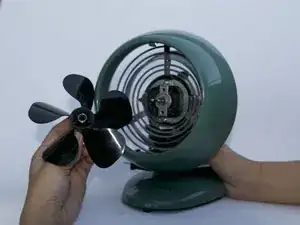

    • Face the front of the fan and pull the blade directly towards you to loosen it.

    • Pull the blade out of the rod.

    • Take note of the blade's orientation.

  3. WYU6buMT1ajAv1Wc

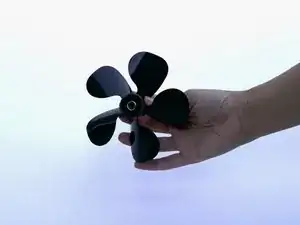

    • If you have purchased a new blade, make sure the orientation matches the one you just removed.

  4. KbKVOptKIiUVGiO2

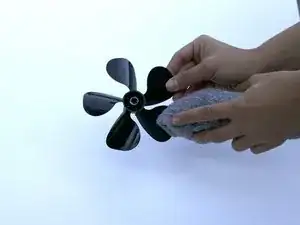

    • Use a cloth to dust the blade or other interior areas of the fan.

  5. mXePfvgEmLnronfu

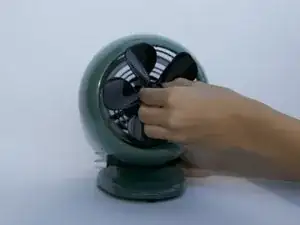

    • Place the blade back inside of the fan.

    • The blade should fit snug when the rod is fully inserted.

  6. CRcBZG5WpWr3PEcB
    CRcBZG5WpWr3PEcB
    BmE3MwpKFPXeWCZl

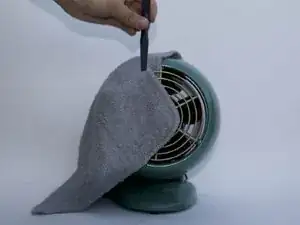

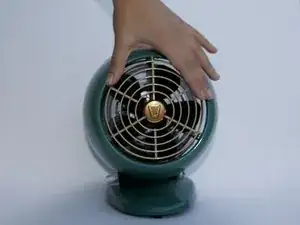

    • Place the blade cap on and secure it into the three holes.

    • Use a pry tool with a cloth to help apply pressure and push the cap into place.
