Introduction
If you need to reinstall the power cord access the bottom hub of the device. For this guide, you will need a standard Philips head and a T20 screwdriver. You will not need to do any difficult steps, but ensure you handle the motherboard with care.
-
-
Orient the device so the nozzle is facing the ceiling.
-
Twist off the primary water holding cap.
-
-
-

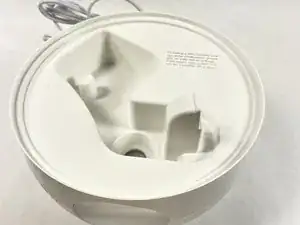

Place the device upside down so that the tank cap is facing you.
-

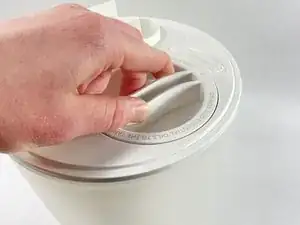

Use your hands to twist the tank cap and remove it from the device.
-
-
-

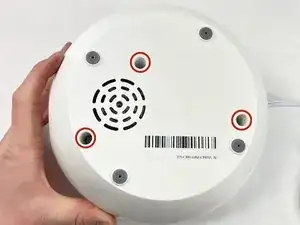

Remove the three screws from the base of the device using a T20 Torx screwdriver.
-

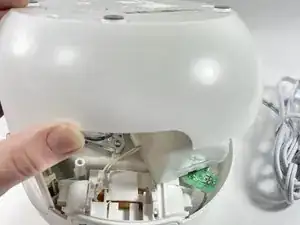

Remove the base of the humidifier to access the components.
-
-
-

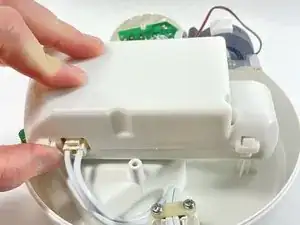

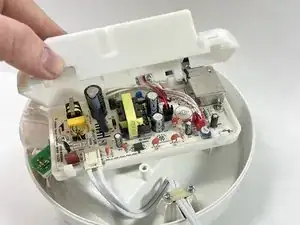

Gently remove the inner shield for the primary board to access the wiring for the humidifier.
-
-
-

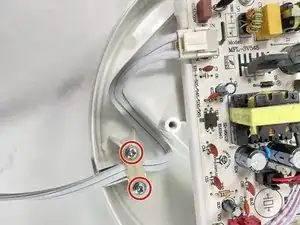

Remove the two Phillips screws holding the power cord in place.
-

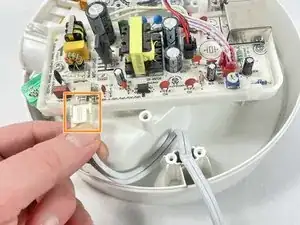

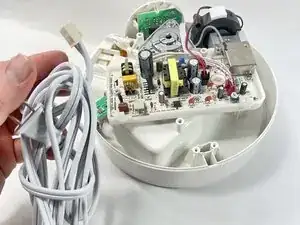

Unclip the power cord from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
