Toyota Corolla 2013 Engine Air Filter Replacement

Written By: Yogeshwar Mahadeo
  • Comments: 0
Toyota Corolla 2013 Engine Air Filter Replacement

Difficulty

Easy

Steps

8

Time Required

10 - 15 minutes

Introduction

This guide will assist owners with the 10th generation Toyota Corolla 2013 to replace the engine air filter for the 2ZR-FE 1.8L inline four-cylinder engine. To get started, ensure the vehicle is parked in a safe place with the ignition turned off and the parking brake engaged.

  1. aBYF1mUYaDNPZpAo

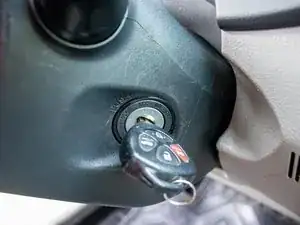

    • Turn off the ignition of the car.

    • Engage the parking brake.

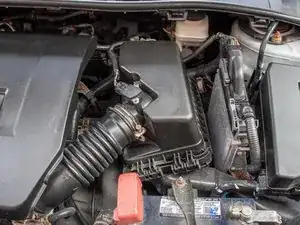

  2. JYjLrAE2ufADWFJj
    JYjLrAE2ufADWFJj
    vTaXxgbxNsPFRAe4

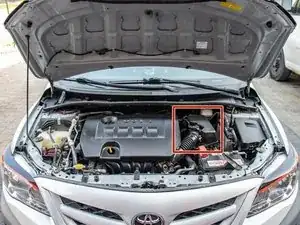

    • Open the car hood.

    • Remove the top half of the engine air filter housing.

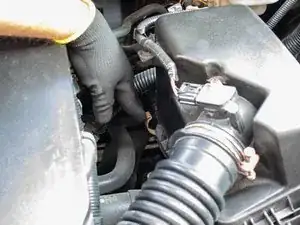

  3. n2LtGKMaPswpjLWW
    n2LtGKMaPswpjLWW
    FfH4YOQsCExSmX2k

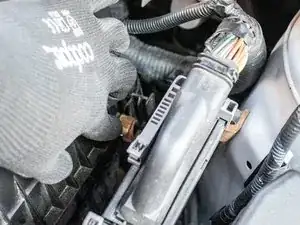

    • Unlatch the two metal latch fasteners by flipping them outwards.

  4. lKXAgqmOnybhfhOI

    • Pull up the top half of the air filter housing.

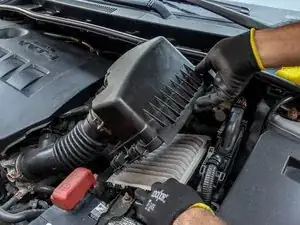

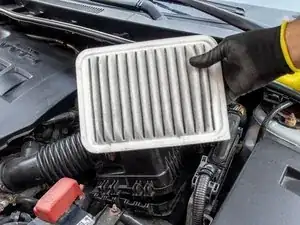

  5. H4GbxlmcKrfqc2EC
    H4GbxlmcKrfqc2EC
    1oyuGeNkASJTv1oG

    • Remove the old filter.

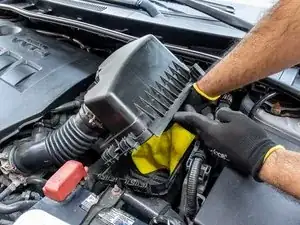

  6. LHnCUffZXqkjMZYr

    • Clean the filter housing with a soft cloth.

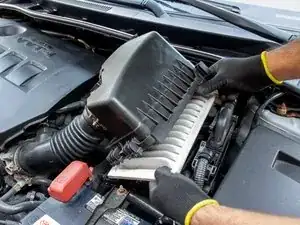

  7. 1DgJ3jiYY1R2AmHo

    • Insert the new air filter.

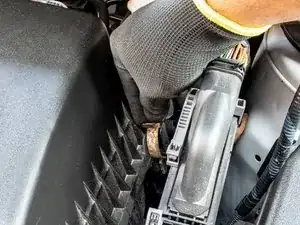

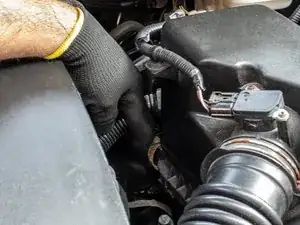

  8. dYVIhUgT4lEASUPo
    dYVIhUgT4lEASUPo
    6POaCpmc1NAvqU3Y

    • Relatch the two metal latch fasteners by flipping them inwards.
