Toro 22in Recycler Lawn Mower 20337 REV B V belt/ Self propel Replacement

Written By: Trevor A
  • Comments: 0
Toro 22in Recycler Lawn Mower 20337 REV B V belt/ Self propel Replacement

Difficulty

Moderate

Steps

5

Time Required

20 minutes

Introduction

  1. jINPcEMH3EI6GVgt
    jINPcEMH3EI6GVgt
    eysLvUPKiWWcL61Y
    efBrlPFe6Hg6VnQE

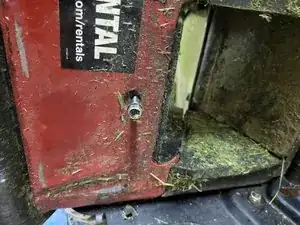

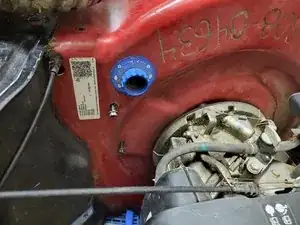

    • Remove seven 10mm bolts from plastic housing then remove cover

  2. x1QCskQS2dnxXLAN
    x1QCskQS2dnxXLAN
    xkqeD4eGRrKvgXN5

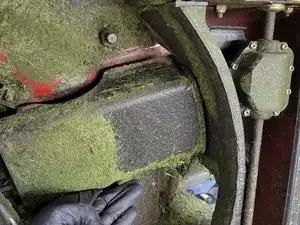

    • Remove both plastic covers

  3. oArjXWVNgkKGT1p5
    oArjXWVNgkKGT1p5
    MUrORXnKyL2ctJuW
    PFlJQnmNb4ScQNcS

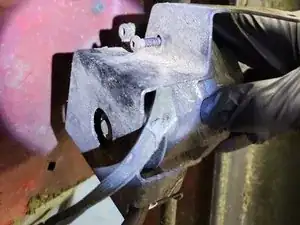

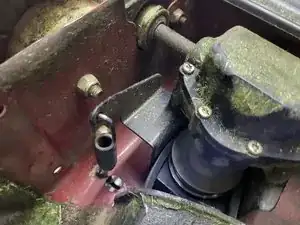

    • Remove 3 squared bolts one on the top two on the bottom to remove bracket.

    • disconnect the spring that pulls the self propel to rotate transmission around for access to the square bolts.

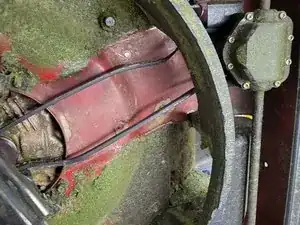

  4. jJhv2qKvUZ5wfBXo
    jJhv2qKvUZ5wfBXo
    NaotLAO3Hgycgbi5

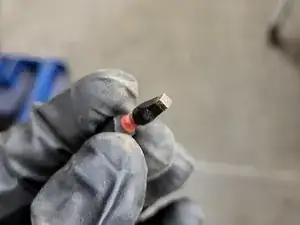

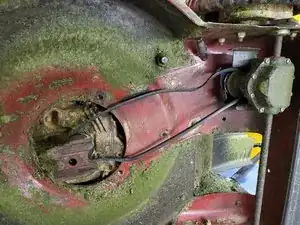

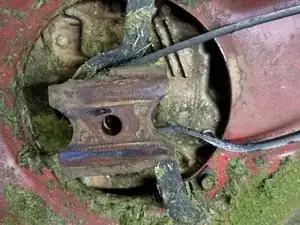

    • Remove one 9/16 blade nut then both 1/2 bolts to remove belt guide.

  5. KKYbBBNGXbpiCrrQ
    KKYbBBNGXbpiCrrQ
    RqqUkPENPQJMZKWI

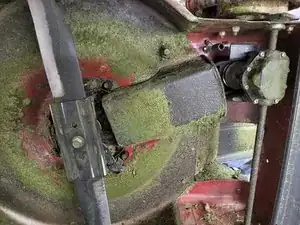

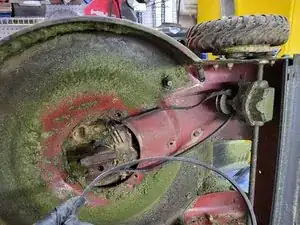

    • Install new belt and reassemble.

Conclusion

To reassemble your device, follow these instructions in reverse order.
