TDK Life on Record Trek 360 Battery Replacement

Written By: Helen Huynh
  • Comments: 2
TDK Life on Record Trek 360 Battery Replacement

Difficulty

Easy

Steps

4

Time Required

10 - 20 minutes

Introduction

This guide will aid you in replacing your old or worn out battery. Replacing the battery will also increase usage time and enhance all other functions of the device.

  1. IRMgTPJdDDEEYdca

    • Turn the TDK Life on Record Trek 360 on its side as shown and remove the four 8 mm screws holding the battery cover in place with the T-5 torx screw bit.

    • Before beginning this guide, be sure that the battery is completely drained of charge. This prevents electrical injury.

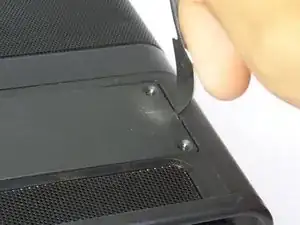

  2. bj1A4kadJWZVOwWN
    bj1A4kadJWZVOwWN

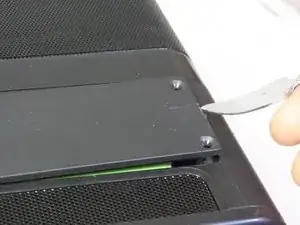

    CdwsdTUiRNCeuvZF

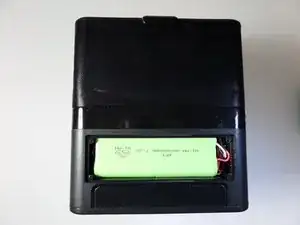

    rUN2GrB2OyTgSWIX

    • Place a metal spudger between the small crease of the battery cover and the device, and apply downward pressure.

    • Pull down like a lever while continuing to apply downward pressure.

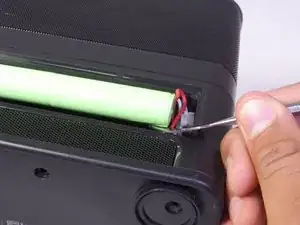

  3. U4VqWTNGJG1sMOgJ
    U4VqWTNGJG1sMOgJ

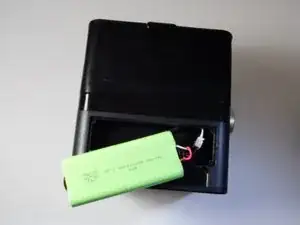

    jrpM52HBd5rdjhF3

    • Using a spudger or plastic opening tool, lift the battery from the bottom right and rotate it upwards and toward you.

    • These images show the use of a metal spudger. Use a plastic opening tool or standard spudger to prevent damage to your device.

    • The battery does not lift STRAIGHT UP. Lifting in this manner could damage the battery, wires, and/or the device.

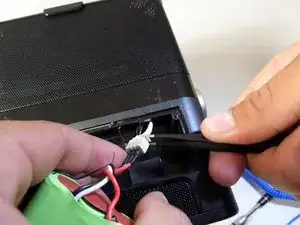

  4. gDjnvX1InGIR4hQD
    gDjnvX1InGIR4hQD

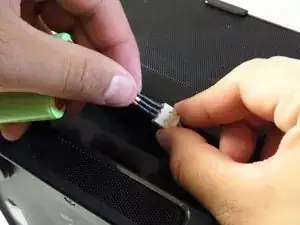

    dyOYEFrIisWGOcdC

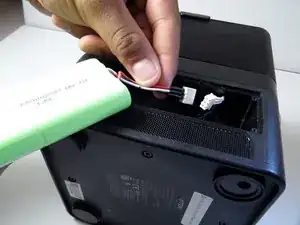

    VuChINC6EqBdeqyC

    • To remove the battery, use one hand to pull on the battery wires, use tweezers to pull on the connecting head of the speaker.

    • Take extreme caution when pulling. This requires some force, but pulling with extreme force can cause damage to the wire/battery/or device.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Helen Huynh

Member since: 14/09/15

338 Reputation

2 comments

Good guide, but what battery fits?

Niklas Aronsson -

I have opened the hatch but I can’t lift the battery out. My battery seems to be glued in place…. :(

EDIT: I broke several cheap plastic spudgers, but when I finally used a metallic one, the battery pack came right out. Yes, I read that one shouldn’t use a metallic one, but this battery is dead like the dodo anyway.

Barbafant Fant -
