Skil X-Drive 18V Cordless Drill Model No. 2887 Chuck Sleeve Replacement

Written By: Jameson
  • Comments: 3
Skil X-Drive 18V Cordless Drill Model No. 2887 Chuck Sleeve Replacement

Difficulty

Moderate

Steps

5

Time Required

1 - 3 minutes

Introduction

  1. 2FMRQNxns6h2XvII

    • Grip the drill. Locate the red locking switch on the back of the battery. Hold the switch down.

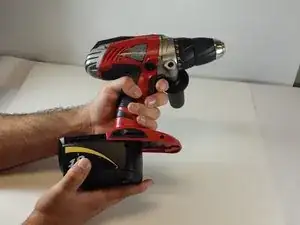

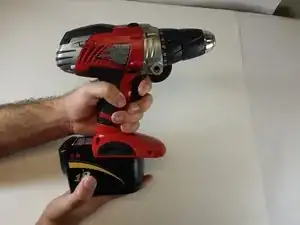

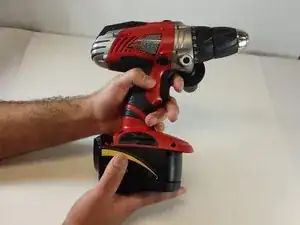

  2. Cd2MZIgfPpuDBAGu
    Cd2MZIgfPpuDBAGu
    iCuFD3kpYcyYO1WY
    lBvqBXhuSAOUgSSM

    • While holding down the red locking switch, slide the battery towards the back of the drill until the battery is fully removed from the drill.

    hi my name is Joe have a set of skil 4 pc sawsal drill skill saw 18 w need to replace a battery x drive same as Pic on this page 2887 18v someone please if anyone could guide me we're and $ it would be thank you

    Joe G -

    Release button apears to be locked. Am I doing something wrong?

    John -

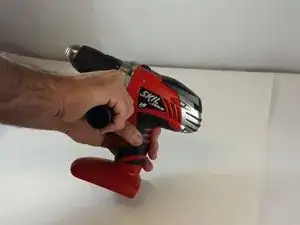

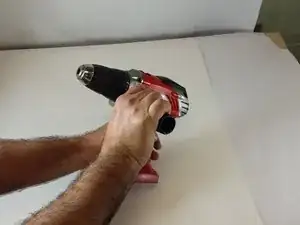

  3. HpFkkaNZX2aUcWbj
    HpFkkaNZX2aUcWbj
    gB3KGKQiostetScR
    f2W51Y2iSEJHgeex

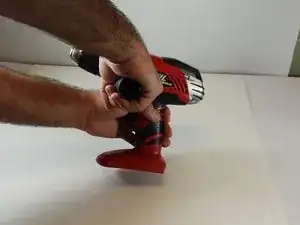

    • Grip cordless drill firmly with left hand. Grip the cordless drill handle firmly with the right hand. Rotate the handle counterclockwise in order to remove the handle from the drill.

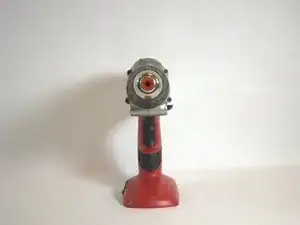

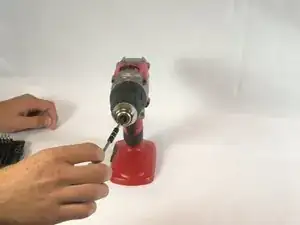

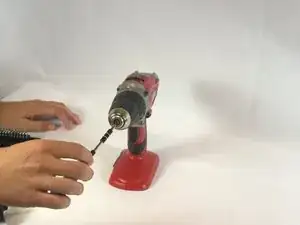

  4. OO1wTrFILYPJbIdZ
    OO1wTrFILYPJbIdZ
    kA2BEXNuWOxwXFmD
    QJRUhiWV26Yay33s

    • The chuck sleeve is held on by a 20mm Phillips #2 screw in the center.This screw is reverse threaded. Insert a Phillips #2 screwdriver and rotate it clockwise to loosen and remove it.

  5. N3rNlmt2ZMhFu6XY
    N3rNlmt2ZMhFu6XY
    aRTfHHx1v2k33vXr

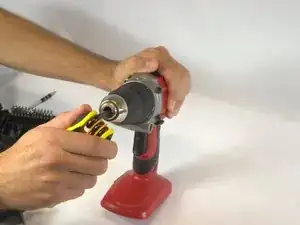

    • The threaded hole the screw was in is in the shape of a 6-point star. Insert a T40 Torx Key and rotate it clockwise to loosen and remove the chuck sleeve.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Jameson

Member since: 23/09/14

258 Reputation

One comment

For my drill, the Torx screw had to be rotated *counter-clockwise to remove. I'm not sure if that was an error in step #5 or some drills are different.

Thank you for the location of those screws btw.

"Step 5 — Remove the chuck sleeve

The threaded hole the screw was in is in the

shape of a 6-point star. Insert a T40 Torx Key

and rotate it *clockwise to loosen and remove

the chuck sleeve."
