Shark Vertex Pro IZ682H Post-Motor Filter Replacement

Written By: Tyree Brooks
  • Comments: 0
Shark Vertex Pro IZ682H Post-Motor Filter Replacement

Difficulty

Moderate

Steps

5

Time Required

1 minute

Introduction

If your Shark Vertex Pro IZ682H vacuum is having issues with its filter, use this guide to learn how to clean and/or replace it. When a vacuum has had a lot of usage, the filter tends to get clogged or damaged and needs to be fixed in order for the vacuum to function properly. By following this guide, you can learn how to thoroughly clean the filter, or replace it if it is damaged.

  1. 6juTamHBkdDnDEc4

    • On the bottom of the device handle, you will find a button on the left side. Press and hold this button.

  2. Ov1WSANZVWHjhxfM

    • While holding the button, slide the battery out of the device.

    • If the battery needs replacing, you can find one on the Shark website.

  3. yXxy1KOLwATcg1Lb
    yXxy1KOLwATcg1Lb
    LWWuZxONiUqSv3mL

    • On the body of the device you will find there is a large grey button on the side of the dust cup.

    • Pressing this button will release the dust cup from the body of the device.

    • Empty the dust cup if the device has already been in use.

  4. mRTybTTWhGwvdRFh
    mRTybTTWhGwvdRFh
    E4dp116QB4FuVnpn

    • Under the dust cup you will find that there is a white pre-motor filter. Remove this filter.

  5. c5iH66KkAmQixUBn
    c5iH66KkAmQixUBn
    CgoaECNNooOrT5Wk
    bsSUOY6PH5NnGj6M

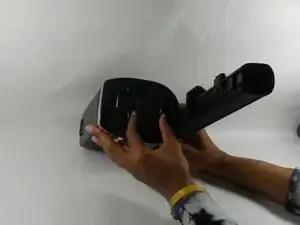

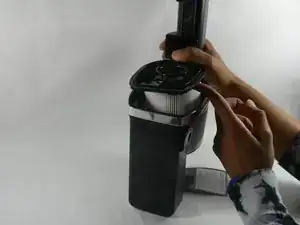

    • You will find the post-motor filter in the device under where the dust cup was.

    • The post-motor filter can be easily removed now.

    • Clean the filter with soap and water.

    • Examine your filter for any damage, and if you find any you can buy a replacement on the Shark website.

Conclusion

To reassemble your device, follow these instructions in reverse order.
