Introduction

This guide will show you how to replace the HEPA filter which is responsible for trapping small particles that can be easily recirculated into the air. When the HEPA Filter is extremely dirty, you may want to consider replacing it.

  1. VcGdLlFrnHQ6vlVJ
    VcGdLlFrnHQ6vlVJ
    k4u1L4NmQRfgV4pW

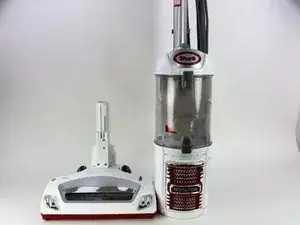

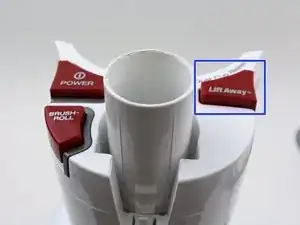

    • Push the red Lift Away button down and lift up on the vacuum handle to detach the base.

    • The handle was removed for convenience but is not required.

  2. hSpdbHYUfNou3cB6
    hSpdbHYUfNou3cB6
    V1eF1kOWJxXKSDvO

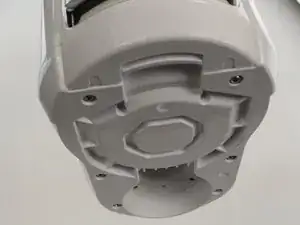

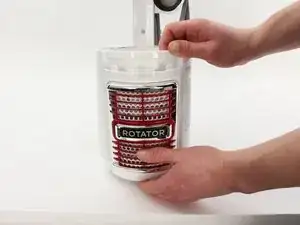

    • Remove the red cover from the front of the vacuum by pulling the latch found at the bottom of the cover forward and moving the whole cover downward.

  3. VPOIKU4U6QOISUoT
    VPOIKU4U6QOISUoT
    Qc6nQW1UJeAmCCaS

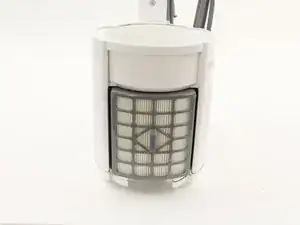

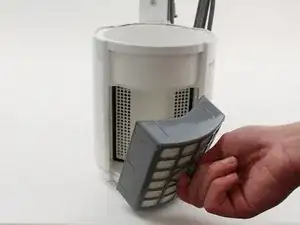

    • Remove the filter by pulling it straight out.

    • To clean the filter, rinse it under water and allow it to dry before placing it back in the vacuum.

Conclusion

To reassemble your device, follow these instructions in reverse order.
