Introduction

The Shark Rotator Powered Lift-Away has multiple filters to ensure a better clean as compared to other models. This vacuum has a foam and felt filter which should be cleaned every three months so that the vacuum can perform at its best. Another filter the vacuum has is a HEPA filter which helps traps dust and allergens inside the vacuum. The HEPA filter should be cleaned at least once a year. This replacement guide shows how to replace the foam and felt filter.

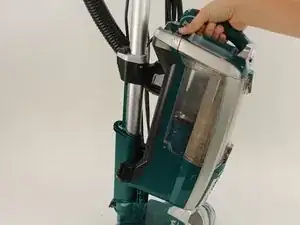

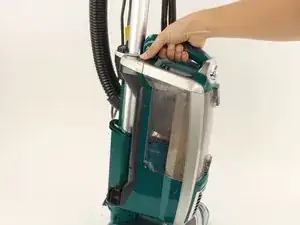

  1. dtUXGMg5De5X4pYg
    dtUXGMg5De5X4pYg
    hYOoSLAafsYWJULl
    3PmoCpCPDeyQqvQs
    • Press on the lift away button and pull away from the vacuum.

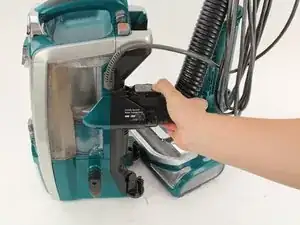

  2. BUXwWlWJvBNQZ5ia
    BUXwWlWJvBNQZ5ia
    m4jOI3V6m2bXSuJE

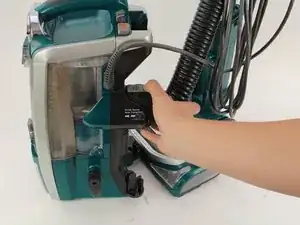

    • Press down on the hose release button and pull away from the vacuum.

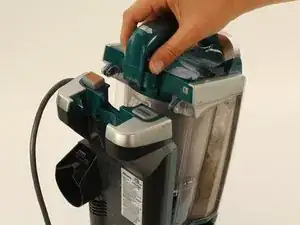

  3. KSaWg4tISHdIQxS4
    KSaWg4tISHdIQxS4
    PoK4alDyicRRH6uD
    6yI4eaC6ulXwsTWv

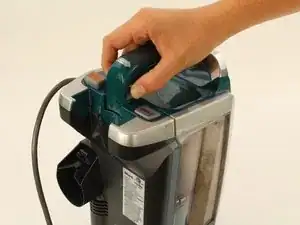

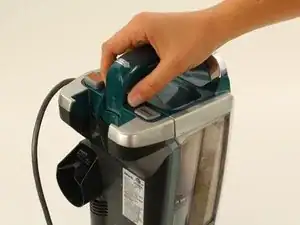

    • Pull the dust cup release latch and lift the dust cup from where it rests.

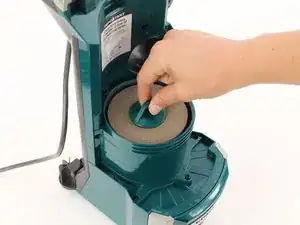

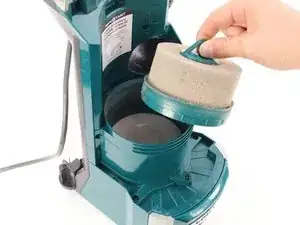

  4. BYGRrcF1YHQPkZNL
    BYGRrcF1YHQPkZNL
    IBSLZJOcovh2FayZ
    • Pull out the foam filter from where the dust cup rested.

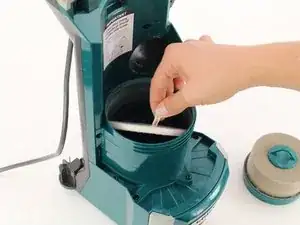

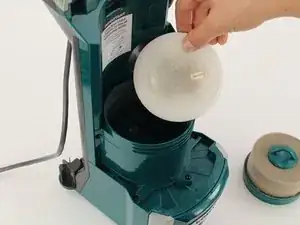

  5. qPGl3LPnyejlxSGA
    qPGl3LPnyejlxSGA
    hc5bM5VPicFNQM6B
    • Pull out the felt filter from where the foam filter rested.

Conclusion

To reassemble your device, follow these instructions in reverse order.
