Shark Rocket Powerhead AH401 Post-Motor Filter Replacement

Written By: Shobhit Dabral
  • Comments: 1
Shark Rocket Powerhead AH401 Post-Motor Filter Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

Dust will build up on the filter over time and block the airway, which will reduce the efficiency of the machine. This guide will show you how to replace a dirty or old Post-Motor Filter on your Shark Rocket Powerhead AH401.

  1. r6JnFOEdHYliTQyb
    r6JnFOEdHYliTQyb
    U2RMsIxEadLXSifJ
    tRUxZykyq1pkGgMD

    • Ensure the device is turned off and unplugged from any power source before beginning work.

    • Push down on the dust can lever to release the dust can in order to get to the filter grill.

  2. NawbRQLgNAEHmZBE
    NawbRQLgNAEHmZBE
    EteSYgiMXENF4IH5

    • Remove the dust cup by lifting it off the dock.

    I have a U shaped part the size of a nickle that came off of inside when I took it all apart and I dont know where it goes? Can you help?

    dcreed111 -

  3. C5GIEHRptQoV12io
    C5GIEHRptQoV12io
    NgTF5SYip2R6MYPZ

    • Push inward on the top of the filter grille where it says "Push."

    • Lift the filter grille upward.

  4. VkrWjkdytZyFuig3
    VkrWjkdytZyFuig3
    2jIwLEaLStRyoBTZ

    • Lift gently and pull the grille up towards you until it releases.

    • The post-motor filter is underneath the filter grille.

  5. yU4YqISA6LhxoLoa
    yU4YqISA6LhxoLoa
    2gD4KeiNVG13g2is

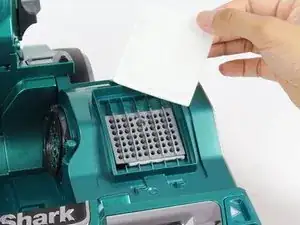

    • Remove the filter by pulling it out and away from the device with your hand.

Conclusion

To reassemble your device, follow these instructions in reverse order.
