Shark Navigator Freestyle SV1106 Dust Filter Replacement

Written By: Zachary Liu
  • Comments: 1
Shark Navigator Freestyle SV1106 Dust Filter Replacement

Difficulty

Easy

Steps

3

Time Required

5 minutes

Introduction

Replace your dust filter when cleaning it does not improve the vacuum's suction, or when the vacuum will not suck the debris.

  1. GFfLvcfrOJpqwV3T
    GFfLvcfrOJpqwV3T
    GBpQFGG1Y5awMPHb
    g6uAyHgw2HHn6GLh

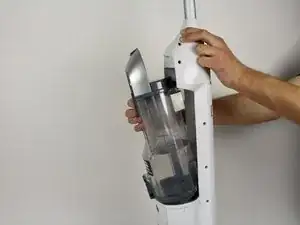

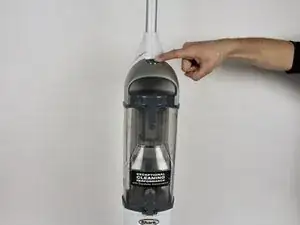

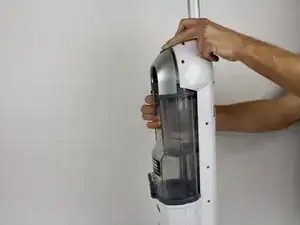

    • Push the grey button on top of the dust cup canister and pull the canister off at the same time.

    • Make sure the dust cup is empty and the vacuum is off before replacing.

  2. Y1AKtKRD2cOxfllG
    Y1AKtKRD2cOxfllG
    ZRd6wYskLYsMlYNG

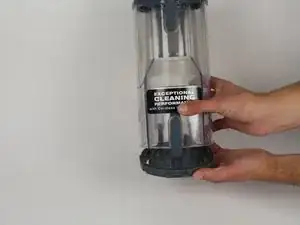

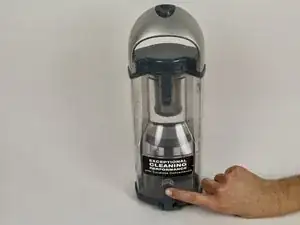

    • Press the grey clip at the bottom of the dust cup to open the dust cup.

  3. Lhn5FHPqF3RTXJTx
    Lhn5FHPqF3RTXJTx
    dHbDoXbKSULSuvQQ

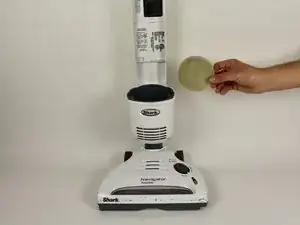

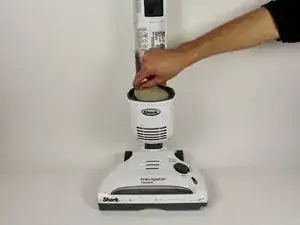

    • Pinch and lift out the filter.

    How do you get the foam filter out? Pinching? What is that? It will not come out.

    Vickie Johnson -

Conclusion

To reassemble your device, follow these instructions in reverse order.
