Samsung TFT Color YP-T7J Front Cover Button Replacement

Remove the 2 screws on the back cover using a Phillips head #0 screwdriver.

Remove the screw on each side of the device using a Phillips head screwdriver.

Using the plastic opening kit, place the prying end of the kit into the opening created by removing the screws.

Gently pry open the back cover. Insert the plastic opening tool in between the cover joints.

Once the back cover has been removed the battery will be visible.

Pry the battery from the device.

Unplug the battery connecting cables.

Once the battery has been removed you can see the motherboard.

Unscrew 4 screws on the metal docket using a Phillips head screw driver.

The USB connector can now be taken off of the device.

Using the philips screwdriver, remove the two screws on the mother board.

Place the pry tool in-between the front cover and mother board.

Gently separate the front cover.

After opening the front cover you will see and electric ribbon connecting the buttons to the mother board.

Carefully flip up the plastic lip that holds the electric ribbon to the board.

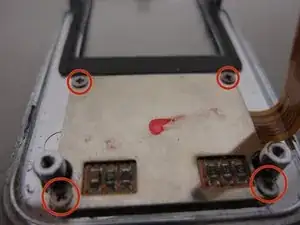

Once the front cover is separated from the device, locate the four screws in the metal plate.

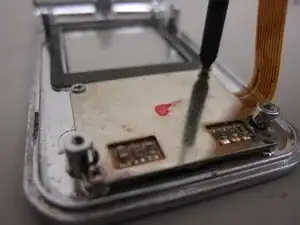

Using the small phillips screw driver, remove the four screws.

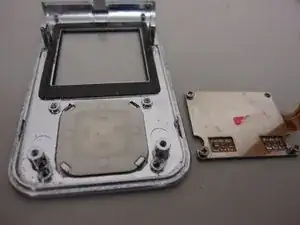

Remove the metal cover.

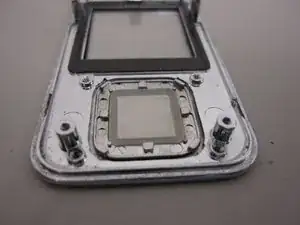

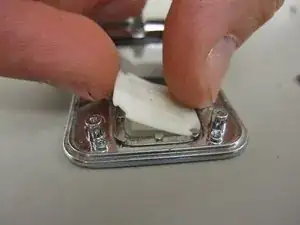

Remove the rubber button pad.
