RotoZip Rebel REB01 Type 2 Power Cord Replacement

Written By: Ezzeddeen Gazali
  • Comments: 0
RotoZip Rebel REB01 Type 2 Power Cord Replacement

Difficulty

Moderate

Steps

8

Time Required

4 - 6 minutes

Introduction

Damaged power cord? Why throw your saw away when you can fix it. If your saw has a damaged power cord, this guide will provide you with step-by-step instructions for the power cord replacement.

  1. ETr6OdrTT4eLDToB

    • Unplug the saw before attempting any of the replacement guides.

    • Orient the saw so that the handle is closest to you and the saw end points towards the left.

  2. qEcEwpJ5BeXQPTbA
    qEcEwpJ5BeXQPTbA
    QOwnBcPcmAnvbSaD

    • Push down on the grey lock on the right side of the handle to unlock it.

    • Pull the handle to detach it from the saw.

  3. bRAII1rW6DLRakve
    bRAII1rW6DLRakve
    BHqnn3J1wXwGTTSG

    • Lift the black lock at the tip of the saw to unlock the depth gauge.

    • Pull the depth gauge to detach it from the saw.

  4. CRytr3ww43xeZodL

    • Rotate the device so that the bottom of the saw is facing upwards.

    • Remove the six 20mm screws with a 6mm flathead screwdriver.

  5. UiyWXClMYTiAnhUK
    UiyWXClMYTiAnhUK
    EHSXKXh2UAavlJEY

    • Cut through the stickers on the right and left sides of the saw using a metal spudger.

    • Pull off the top half of the casing.

  6. PdAZoSKlVDYdvPdO
    PdAZoSKlVDYdvPdO
    1f4jNi6MMgRQSLHS

    • Remove the two 14 mm screws on the plastic plate holding the power cord with a flat head screwdriver.

    • Lift off the plastic plate holding the power cord with a tweezer.

  7. A6q4iRCrnEAcirNI

    • Pull the switchboard out slowly.

    • The power switch will also come out. Set it on the side.

  8. 52BZmBNZ4MNXib2P
    52BZmBNZ4MNXib2P
    UEZVB513hqMdWMow

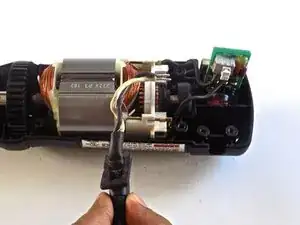

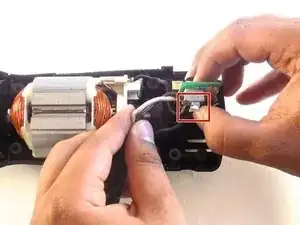

    • Pinch the two white clips with your thumb while simultaneously removing the black and white wires.

    • Remove the power cord from the saw.

    • When reassembling, make sure to plug the black wire into the top clip.

Conclusion

To reassemble your device, follow these instructions in reverse order.
