Introduction
This guide will detail how to disassemble the maelstrom audio control device and repair a damaged wire connection.
Tools
-
-
To get to the maelstrom wiring you must first pull off the plastic cover.
-

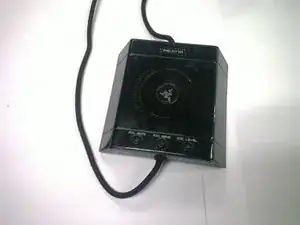

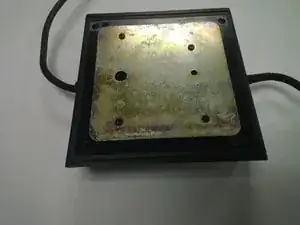

To do this roll the maelstrom over so the rubber cover on the back is facing up. The rubber pad simply peels off exposing the metal backplate.
-

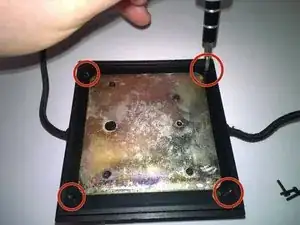

Then remove the four 8.5mm screws on the back plate of the maelstrom.
-
-
-
Once the four screws are removed, the top cover can be lifted off.
-

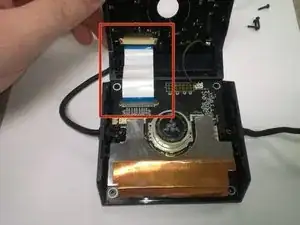

There is a ribbon wire connecting the volume wheel to the circuit board. This is not permanently attached, and can be plugged back in if it gets pulled out.
-

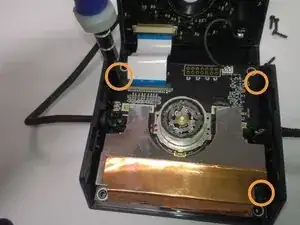

Remove the three 2mm screws from the circuit board to separate it from the back plate.
-
-
-

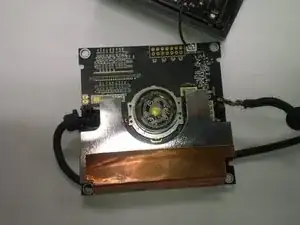

The circuit board is now completely separate from the housing and the wires can now be inspected.
-

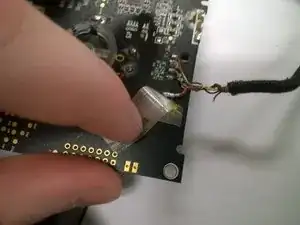

Peel back the tape on the wires to inspect any damage to the wires if there is any.
-
To reassemble your device, follow these instructions in reverse order.
