Puritan Bennett 840 Expiratory Filter Replacement

Written By: Julia Rios
  • Comments: 0
Puritan Bennett 840 Expiratory Filter Replacement

Difficulty

Moderate

Steps

7

Time Required

10 - 45 minutes

Introduction

This guide describes how to replace the Puritan Bennett 840 Re/X800 Expiratory Bacterial Filter.

The expiratory filter is responsible for filtering out impurities and particulates from the gas or airflow within the ventilator, and redirects said impurities into the collector vial.

Before completing the replacement, it is important that you are familiarized with the expiratory filter and collector vial system. Please ensure that all safety measures are followed to replace the filter successfully.

There are two types of expiratory filters–reusable filters and single-use filters. Single-use filters must be discarded each time the collector vial must be emptied. Reusable filters must be sterilized using a steam autoclave. These instructions are applicable to both types of filters, providing that the user understands how to use autoclaves.

For more information on replacing the expiratory filter, please refer to page 8-76 (section 8.15.9.1) in the service manual.

  1. 6BSMktWZCPBQuVhg

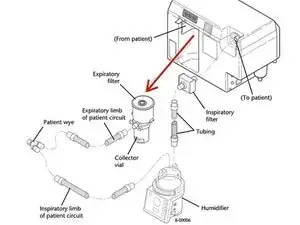

    • Locate the expiratory filter system inside the patient circuit. It is a cylindrical object that sits inside the housing as shown.

    • The expiratory filter itself is the larger cylinder that sits on top of the collector vial, but both are removed from the patient circuit as one entity.

  2. 6gSSEXcVwsLkc5SS

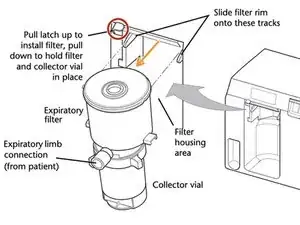

    • Once the expiratory filter has been located, find the latch that sits on the outside edge of the housing area (see picture).

    • Gently push this latch upward, and slide the filter out of the housing.

    • The image shows a process for installation–in the same way, the latch can be raised to remove the filter for replacement.

  3. MUc2r5T1uQkYSMjp

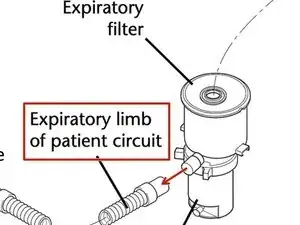

    • Once the expiratory filter has been removed from the housing, detach the expiratory filter system from the patient circuit expiratory limb tubing.

  4. aUicHVC4DK3ME6CP

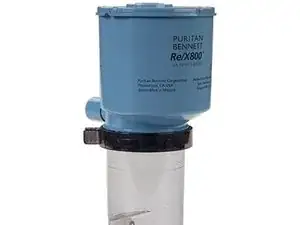

    • Obtain a new expiratory filter intended for the replacement.

    • This can either be a new single-use expiratory filter, or a reusable filter that has been sterilized using an autoclave.

    • The model shown is the Re/X800 model for the Puritan Bennett 840; the link to purchase them is provided in the details section of the tutorial.

  5. WwhkfZibxWNGwafw

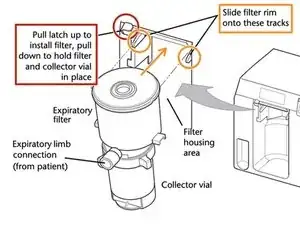

    • Locate the same latch used in Step 1, and lift it up gently.

    • Slide the new expiratory filter system into the housing so that the rims rest on the ridges inside the housing.

    • Ensure that the fitting for the expiratory limb tubing is facing your direction before sliding it in.

  6. yNuZGwrxnj6E2GLH

    • Once the expiratory filter system is inside the housing, push the latch down gently and ensure that the filter stays in place.

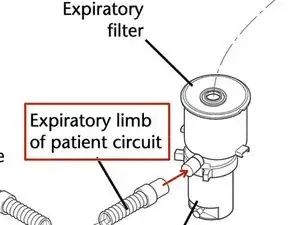

    • Locate the expiratory limb tubing in the patient circuit, and attach it to the fitting on the outside of the expiratory filter.

  7. CM5SidtKwQaAcuXk

    • Check to see if your ventilator uses a dran bag.

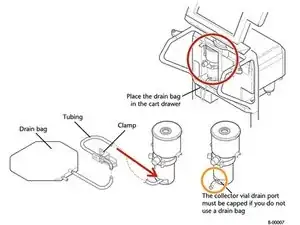

    • If your ventilator uses a drain bag, attach the drain bag to the collector vial as shown, which is placed underneath the expiratory filter system.

    • If a drain bag is not used, make sure to cap the bottom outlet of the collector vial.

    • This step is crucial as it allows the user to proceed with an expiratory filter test described in the conclusion. Ensure that the drain bag, if applicable, is attached fully.

Conclusion

Once all steps are completed and the filter has been replaced, run an SST circuit leak test to ensure that the expiratory limb tubing, drain bag tubing, or any other components are sealed tightly. A circuit leak test should be conducted each time the filter is replaced.
