Introduction
Often times, a grinder that won't power on is due to a faulty power switch. This mechanical part may fail over time, resulting in the need to replace it. Use this guide to replace the power switch in your Porter-Cable PC60TAG.
-
-

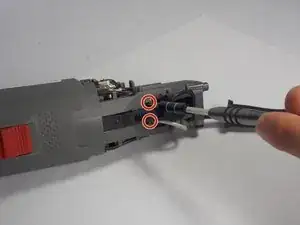

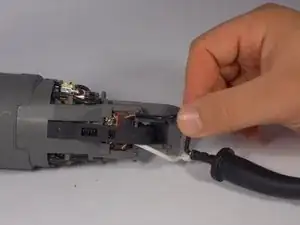

Using the Phillips #2 screwdriver, loosen, but do not remove, the two terminal screws securing the black and white wires from the power cord.
-
-
-

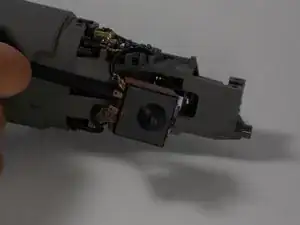

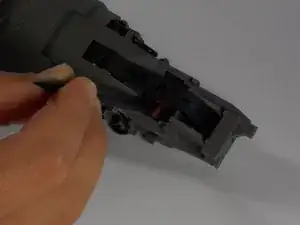

From the other side of the device, use the spudger to carefully pry out power switch away from the device.
-
-
-

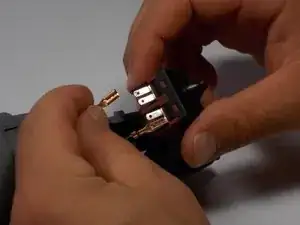

Using your fingers, carefully remove each of the gold terminals from the power switch. You may need to gently wiggle the terminal back and forth in order to remove it.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
