Porter-Cable PC60TAG Motor Brush Replacement

Written By: Mackenzie Fairbanks

Comments: 0

Porter-Cable PC60TAG Motor Brush Replacement

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

The motor brushes of the Porter-Cable PC60TAG provide a conducting path to the motor, and they may eventually wear down as the device begins to age. Use this guide to replace the brushes of your Porter-Cable PC60TAG.

Tools

Step 1

Using the Phillips #2 screwdriver, remove the 3/4" screw on the back cover.
Unplug the grinder before disassembling.

Step 2

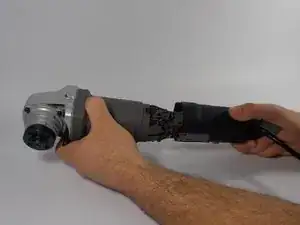

Holding the front of the device, carefully slide the back cover over the cord.

Step 3

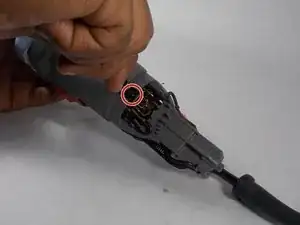

Using the Phillips #2 screwdriver, remove the 1/2" screw holding on the motor brush arm.

Step 4

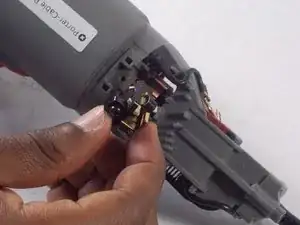

Carefully pull the motor brush arm away from the other device.

Step 5

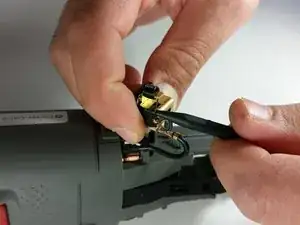

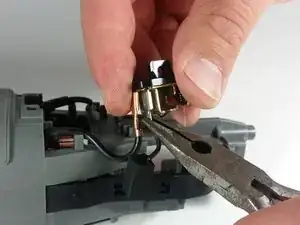

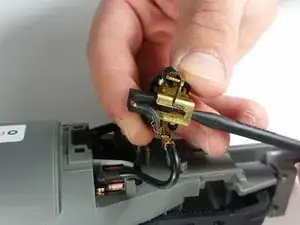

Using the spudger, carefully lift the spring on the motor brush arm off of the motor brush and gently pull it to the side of the motor bush arm.
Be careful not to over bend the spring, as this could damage the spring and require replacement.
