Philips Norelco Shaver Head Blade Replacement

Written By: Austin Fisher
  • Comments: 11
Philips Norelco Shaver Head Blade Replacement

Difficulty

Easy

Steps

8

Time Required

10 minutes

Introduction

If you have a Philips Norleco face shaver and are noticing that it is becoming less effective, you may need to replace the shaving head blades with new ones. These heads contain small blades that dull over time. Philips Norelco recommends they be replaced every 12 months. In this guide I will show you how to install your new replacement blades.

  1. Wd6KkU6FPMsvTbjl
    Wd6KkU6FPMsvTbjl
    iFt2Q4WeQPNJRHmu

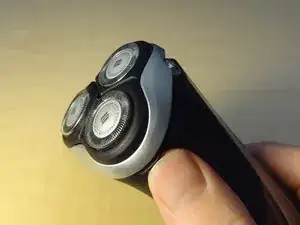

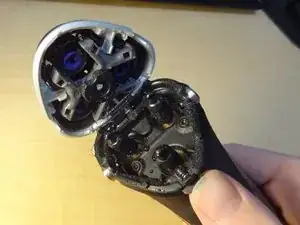

    • Begin by pressing the small button beneath the head to allow it to open.

  2. 6i64tgRQuL4tOODm
    6i64tgRQuL4tOODm
    tAsjdAGE2nXMFpGy

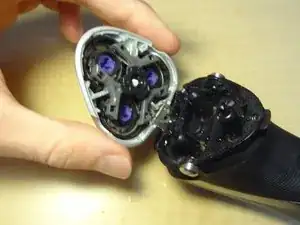

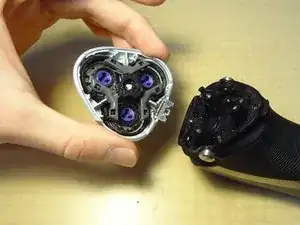

    • Grasp the sides of the head and pull straight up to detach it from the body.

  3. bAFhyvYETOMAgLIV
    bAFhyvYETOMAgLIV
    etaOVSvNBUaDIUGT

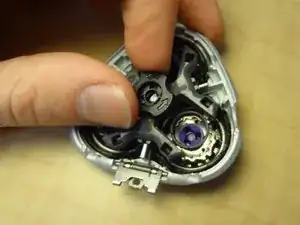

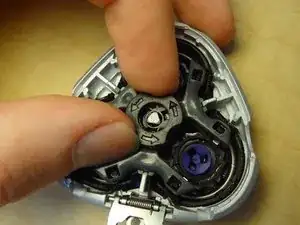

    • To unlock, rotate the center locking mechanism counter-clockwise.

    Three blade head fit all shaver?

    Ronnie Kincaid -

  4. 5XJXK2iyA6CGWKuL

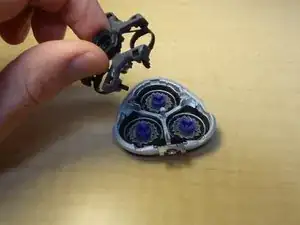

    • Lift the locking mechanism straight up, freeing the blades.

  5. XiJktvpLKBfBlC3m
    XiJktvpLKBfBlC3m
    ptLjnDHWhGhJu5Mp
    vpWiLBEOmTb4LV4p

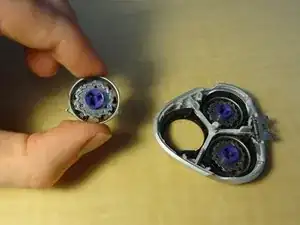

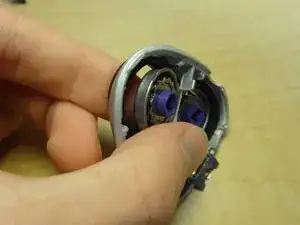

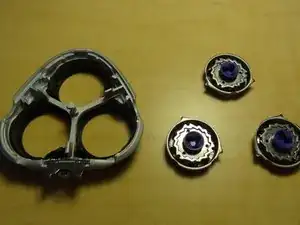

    • Carefully push the blades out from behind.

    • Although the blades are covered, they can fall apart, exposing sharp edges. Always use care when handling.

  6. trM3ACFvrEMlhWTI
    trM3ACFvrEMlhWTI
    fgD3YITVkS1NNO2L
    GLDGKHTTwXSAAkgx

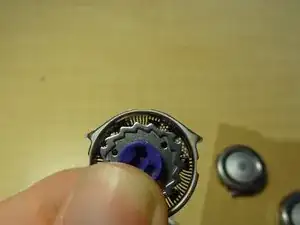

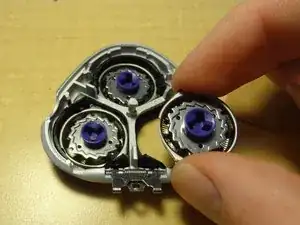

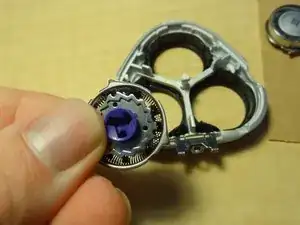

    • Insert the new blades, making sure to face the side with the two tabs towards the center of the head.

    • Although the blades are covered, they can fall apart, exposing sharp edges. Always use care when handling.

  7. JEfdtniwoAmDkhCg
    JEfdtniwoAmDkhCg
    OvOmbkuRDJLiIV4G
    4LKMQDwRPlLNAJFB

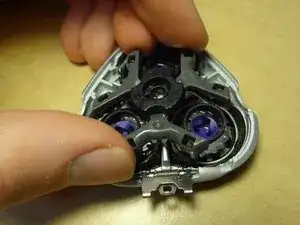

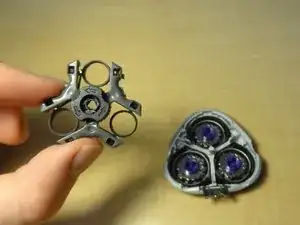

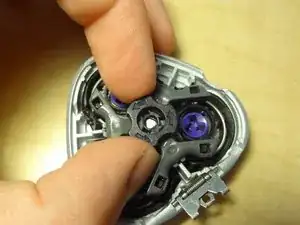

    • Line up the locking mechanism with the new blades, then rotate the center clockwise to lock down.

  8. wLMDIvDHnUYSuRpe
    wLMDIvDHnUYSuRpe
    siK52UIcl2iDfkJs
    GkYbnQkDHHPuNbMC

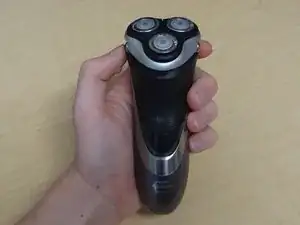

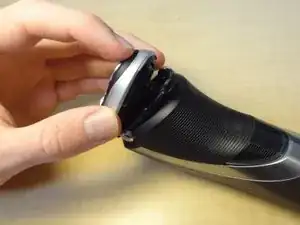

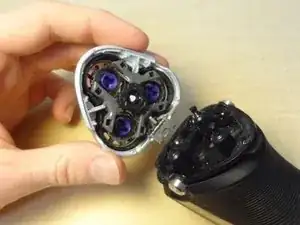

    • Push the head back onto the body, then close it up. Your shaver is good to go!
