Nintendo NES Advantage B Button Replacement

Written By: Aksel Andreassen
  • Comments: 0
Nintendo NES Advantage B Button Replacement

Difficulty

Moderate

Steps

8

Time Required

15 minutes

Introduction

If you are having problems with your Nintendo NES Model NES-026 Advantage's B Button, you'll need to remove it to investigate potential issues.

The B button is used to send inputs to the device. You'll need to remove your B Button if it is stuck in the pressed position or too stiff to move.

Before you start working on this guide, make sure the device is unplugged from any external sources.

  1. YAPPTn4vRFi4sFWt

    • Remove the four sticky pads from the bottom of the device.

    • If the pads are stuck, use a spudger to remove them.

  2. lqp1ggtUyoKOFFqF
    lqp1ggtUyoKOFFqF
    ZwjLnU6xWBhfMWip

    • Remove the six 8 mm screws from the bottom of the device with a Phillips #0 screwdriver.

    • Use your hands to pull the back panel away from the controller.

  3. J5iIlQR42rdoI5GT
    J5iIlQR42rdoI5GT
    igVAaY2kMM6dqR11

    • Remove the three 14 mm screws from the gray cross with a Phillips #0 screwdriver.

    • Lift the gray component away from the device.

  4. srkrXWLsmmIGlTLX

    • Lift up the black wire and move it to the side.

  5. PDVdsewwULTIcWMF
    PDVdsewwULTIcWMF
    gSn4EdbwmtpPuFbM
    QXfaPIEy5a4Mx6Fk

    • Remove the two silver knobs on the front of the device.

    • Unscrew the two silver nuts using a flathead screwdriver.

    • Remove each silver nut and silver washer using a pair of tweezers.

  6. YP3FYMU1DIBISAin
    YP3FYMU1DIBISAin
    PJsqYwDCJYBbugno

    • Remove the remaining three 8 mm screws on the circuit board with a Phillips #0 screwdriver.

    • Remove the silver bracket from the top of the circuit board.

  7. KwR5neji2Gqh6OJp

    • Remove the circuit board from the controller.

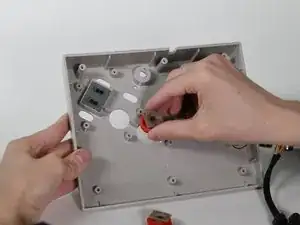

  8. r6CfjcjxMRKRLFve

    • Remove the B button from the case (or the circuit board if it got stuck).

Conclusion

To reassemble your device, follow these instructions in reverse order.
