Nerf Dart Tag Swarmfire Motor Spring Replacement

Written By: Sonal Purohit
  • Comments: 0
Nerf Dart Tag Swarmfire Motor Spring Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 25 minutes

Introduction

This guide will help you find and replace the motor spring.

  1. SNhJdn2WUrd3AX2Q
    SNhJdn2WUrd3AX2Q
    FCN4VMUGDN1usTFR

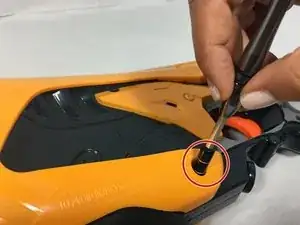

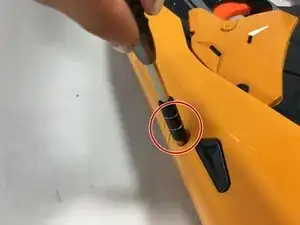

    • Using the JIS #1 screwdriver, loosen the nine screws, holding the outer yellow shell in place

    • The screwdriver you'll be using is a J1 head from the 64 Bit Kit.

    • Be sure to sure to use the Magnetic Project Mat to prevent loss of the screws.

  2. X2baWZkkYRlBVrIX

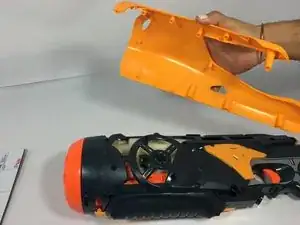

    • Lift off the outer yellow shell.

  3. POgu2kXOUa12much
    POgu2kXOUa12much
    soJBKNJGxewlWcLR
    PfPMcWXVroWbvfPh

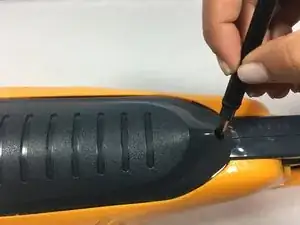

    • Remove the screw holding the battery compartment shut.

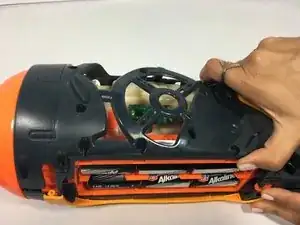

    • Lift off the inner blue casing

  4. ekujR6VxOASkcBff
    ekujR6VxOASkcBff
    CERoNOby66YTRuaU
    dXSUI2XxaVgJvjG3

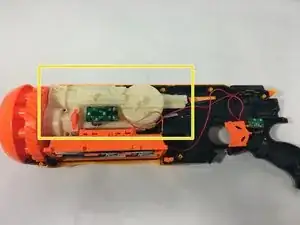

    • Lift off the blue casing, exposing the white motor spring compartment.

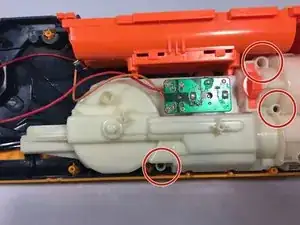

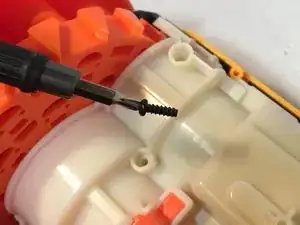

    • Loosen and remove the three screws holding the white compartment door shut.

  5. K4tSln4GvDGotbTp
    K4tSln4GvDGotbTp
    Fo3oQYZR4d4IvAkK

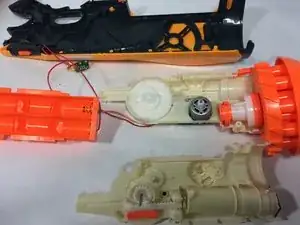

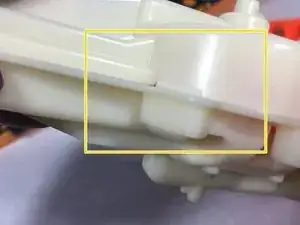

    • Unsnap the white compartment into two pieces.

  6. sWS6Aois5ISpWDme
    sWS6Aois5ISpWDme
    ZKIfyq5ZGwCoI3HM
    x64iwhF6irRCAk4e

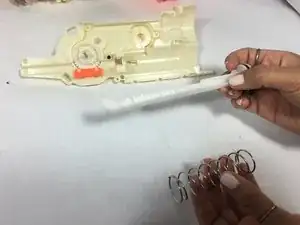

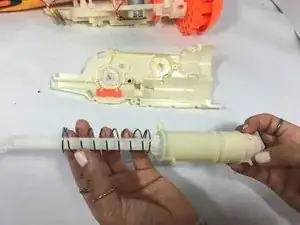

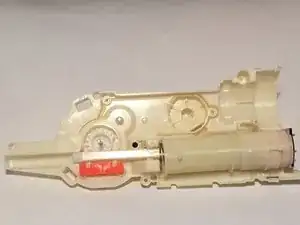

    • Remove the motor spring located inside the rotating barrel and replace.

Conclusion

To reassemble your device, follow these instructions in reverse order.
