Introduction
In this guide you will learn how to remove and readjust the trigger of the device. Learning to do so will assist you with trouble shooting problems such as the sticking of the trigger when operating the device. This problem is usually caused by clogging of foreign objects within the device, spring malfunction, or misaligned pieces.
-
-

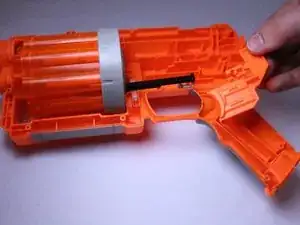

Using a 00 Phillips screwdriver, remove all screws from the front panel. The screws have a length of .95 cm.
-
-
-
Locate the black cylinder connected to the large spring near the top of the device.
-
Once located, push the black cylinder against the spring and lift it out of the device.
-
-
-
Using your hand, lift the large spring and attached plastic stabilizing piece out of the gun and set aside.
-
-
-
Remove the two screws circled in blue. They are .95 cm in length.
-
Remove the three screw circled in green. They are .7 cm in length.
-
-
-
In order to remove the white plastic holder, you must remove the spring that keeps it in place. Using a 00 Phillips screwdriver, carefully remove the screw while holding the spring in place.
-
-
-
Using a plastic opening tool, detach the black piece from the trigger. You do not need to remove the black piece from the gun.
-
To reassemble your device, follow these instructions in reverse order. Ensure that the spring located behind the trigger is attached to the limb on the backside of the trigger.
