Nerf Dart Tag Furyfire Chamber Replacement

Using a 00 Phillips screwdriver, remove all screws from the front panel. The screws have a length of .95 cm.

After the screws have been removed, gently lift the panel from the gun and set it aside.

Locate the black cylinder connected to the large spring near the top of the device.

Once located, push the black cylinder against the spring and lift it out of the device.

Using your hand, lift the large spring and attached plastic stabilizing piece out of the gun and set aside.

Remove the two screws circled in blue. They are .95 cm in length.

Remove the three screw circled in green. They are .7 cm in length.

Once all of the screws have been removed lift the pump handle off and set it aside.

In order to remove the white plastic holder, you must remove the spring that keeps it in place. Using a 00 Phillips screwdriver, carefully remove the screw while holding the spring in place.

Using a plastic opening tool, lift the white piece out of the gun and set it aside.

Using your hand, slide the track out of the gun by pulling it away form the device.

Using a plastic opening tool, detach the black piece from the trigger. You do not need to remove the black piece from the gun.

Once the black piece has been detached, the trigger can be lifted out of the device.

Once the trigger has been removed, simply pull the black connector out of the chamber. Set it aside.

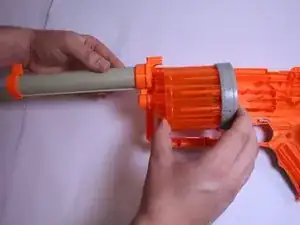

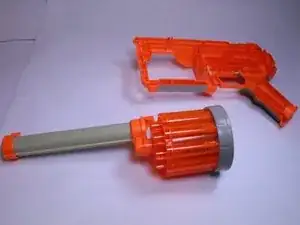

With your hands gently grasp the barrel and chamber of the gun, and pull it away from the main body.

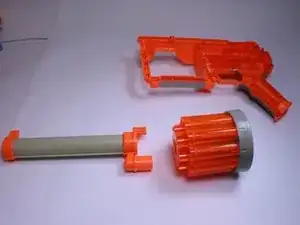

Using your hands, remove the barrel from the rotating chamber.
