Motorola Edge (2021) Front-Facing Camera module Replacement

Written By: Jaier
  • Comments: 0
Motorola Edge (2021) Front-Facing Camera module Replacement

Difficulty

Moderate

Steps

8

Time Required

25 - 45 minutes

Introduction

Welcome to our guide on replacing the front camera of the Motorola Edge (2021). Whether your camera is damaged or malfunctioning, this step-by-step tutorial will help you replace the front camera module efficiently. Follow these instructions carefully to restore your device's selfie-taking capabilities in no time.

This guide requires the use of the iOpener to soften the adhesive holding the phone casing together. For details on using an iOpener, check out this guide.

  1. pTBFtKNK1TEvZEVO

    • To start you need remove the back cover

  2. OLnFa5DewcTE41uH

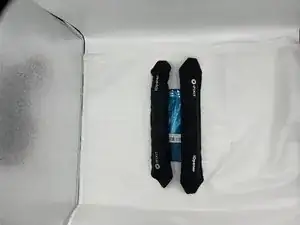

    • To achieve this use two i-openers to heat up the glue.

  3. B634CVoVMQGjNISQ
    B634CVoVMQGjNISQ
    CFamTW6FaCs1THYd
    nY62V1qWf1IbJMNo

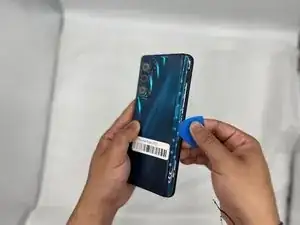

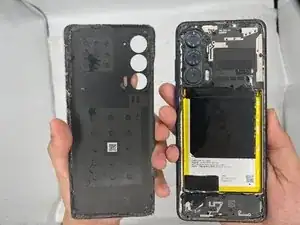

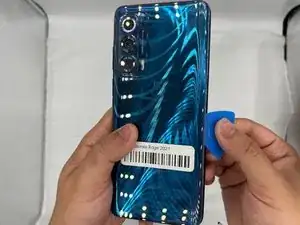

    • Use the iFixit opening tool to go in between the cracks of the Motorola

    • Keep sliding it along the sides of the phone until the glue is separated from the back-plate.

  4. uQg1NhNtOA3WqIVq
    uQg1NhNtOA3WqIVq
    mqf2SY6fMgHyIkKB

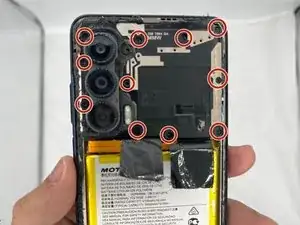

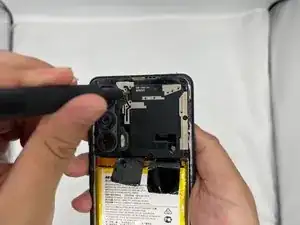

    • Now, use a screwdriver to unscrew the motherboard/camera casing. Be sure check under the glue for hiding screws.

  5. BiGc3NnPAqZsksg5
    BiGc3NnPAqZsksg5
    ivclgiDXTENe6ruW

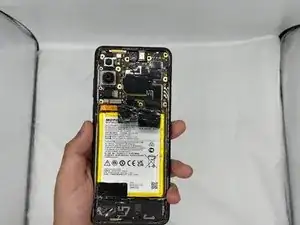

    • After you're done unscrewing, use the Ifixit opening tool to carefully pry open the casing.

  6. MbPahk6t1DIPdTjb

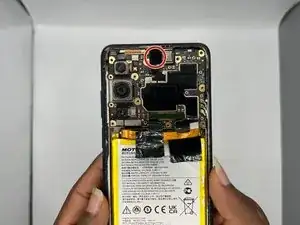

    • This is the Front facing camera module.

  7. sWmiEUyUuVAkOX2p
    sWmiEUyUuVAkOX2p
    aQHlUa4thsEJNE25

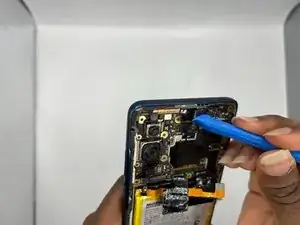

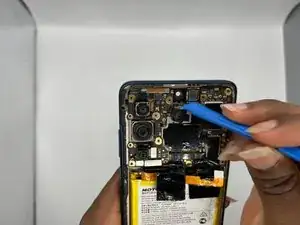

    • Carefully remove the camera module using the Ifixit opening tool.

  8. pAGRZgZugXa51MXr

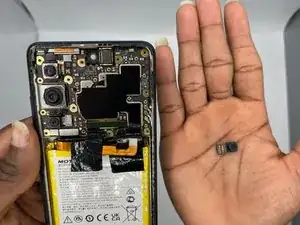

    • The front facing camera module is now successfully removed. Congratulations

Conclusion

To reassemble your device, follow these instructions in reverse order.
