Introduction
This guide will provide you instructions for the removal of the subwoofer (rear speaker) from the speaker.
-
-
Use a spudger or your fingers to pry off and remove the rubber pad on the bottom of the speaker.
-
-
-
Remove the five 10mm screws with a TR 10 screwdriver.
-
Use a spudger to break the remaining adhesive holding the grille to the speaker body.
-
-
-
Use a plastic opening tool to remove the foam and uncover four more screws.
-
Use a TR 10 screwdriver to remove the five 10mm screws on the top of the speaker.
-
-
-
With the top panel removed, use a spudger to remove the display panel.
-
Use a TR 10 screwdriver to remove the four final 10mm screws securing the speaker grille.
-
-
-
After removing grille, you will see the speakers.
-
Remove the eight 10mm screws that surround the speakers. There will be four around each speaker.
-
-
-
Carefully lift each speaker from the housing. It may be necessary to break a light adhesive seal.
-
Set each speaker beside the main housing.
-
-
-

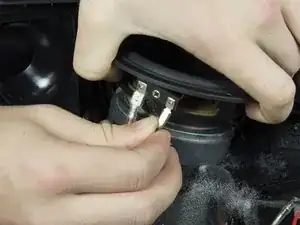

Carefully but firmly unplug the two wires from each driver.
-
The front speakers can now be removed.
-
-
-
Identify the eight screws around the border of the front panel.
-
Using the TR 10 driver, remove the two 8mm screws.
-
Using the TR 10 driver, remove the six 12mm screws.
-
-
-
Use a 5 mm hex driver to extend the TR 10 driver. This allows the driver to access screws with deeper countersinks.
-
-
-
Identify the remaining four screws in the front panel.
-
Use the extended driver from the previous step to remove the four 12mm TR 10 screws.
-
-
-
Gently pull the front panel away from the back panel.
-
Remove the white sound dampening material from the speaker. Note the location of the material and set aside.
-
-
-

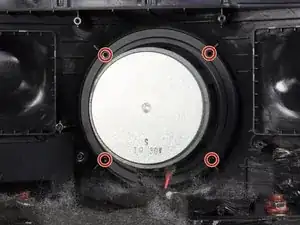

Remove the four 10mm screws that secure the rear speaker with a TR 10 driver.
-

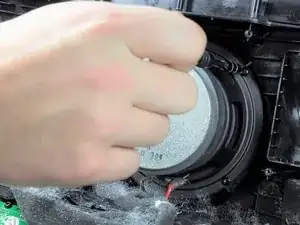

Remove the rear speaker from the housing.
-
To reassemble your device, follow these instructions in reverse order.
