Monster SoundStage S1 Mini Circuit Board Replacement

Written By: Heather Carrillo
  • Comments: 2
Monster SoundStage S1 Mini Circuit Board Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

  1. NTZJCxfPGAyZcAAs
    NTZJCxfPGAyZcAAs
    bkcIZwDtLxsKWTGw

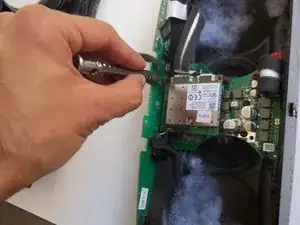

    • Remove one 7 mm Torx security screw from the top left corner and two 5 mm Torx security screws from the bottom left and top right corners of the circuit board.

  2. BWQYsqkmZNMu3DaZ
    BWQYsqkmZNMu3DaZ
    tTrZ3MQwTRvJMLYA

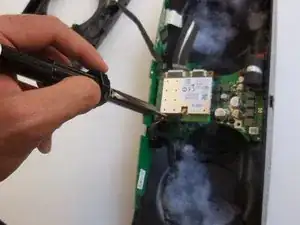

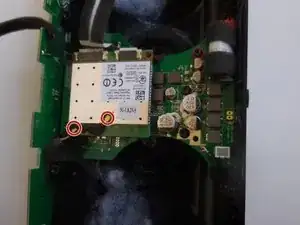

    • Solder the two wires connecting the circuit board to the motherboard.

  3. kW5gOodHmxEXGFoy
    kW5gOodHmxEXGFoy
    qGs4DjIlTXKRuPQH

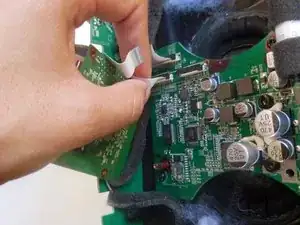

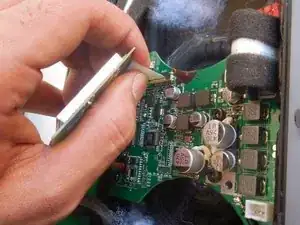

    • Remove the two circuit wires by gently tugging on them.

Conclusion

To reassemble your device, follow these instructions in reverse order.
