MacBook Pro 17" Models A1151 A1212 A1229 and A1261 Left Fan Replacement

Written By: iRobot
  • Comments: 46
MacBook Pro 17" Models A1151 A1212 A1229 and A1261 Left Fan Replacement

Difficulty

Difficult

Steps

20

Time Required

No estimate

Introduction

Replacing a defective fan is pretty easy and will keep your laptop running cool.

  1. inpTqi3kC2oEILvL

    • Use your fingers to push both battery release tabs away from the battery and lift the battery out of the computer.

    Before upgrading to a larger HD, you'll want to "clone" your original HD using the donation-ware program "Carbon Copy Cloner" (http://www.bombich.com/). Put the new HD in an external case; clone the original; test the clone (by starting up with it), then take apart the MacBook to put the new HD in the MacBook, and the original in the external case for use as a backup, etc. (You can't just drag the contents of the original HD to the new HD, and expect it to work; not since the days of OS 9 and before.)

    amiller770 -

    Can I put more than two gigabytes of RAM in?

    Noah Nsangou -

    mine has 2g＊2＝4 gb ram in. you should be fine

    on mac forum it suggested to put 4gb and a 2gb in a1261.

    david -

    I made the mistake of wanting to do a clean install of OS and start fresh after installing a SSD. Now I can't install most browsers on OSX Leopard. Does anyone know what is the most current version of OS I can put on this system? (disk or download) Can I get to Snow or Lion?

    2006 17" MackBook Pro Model#A1151

    2.16 GHz Intel Core Duo

    Memory: Two 1GB 667 MHz

    Hard Drive: Corsair Force GS: SSD 128GB

    scannon -

    You can install OS X 10.7 LION and no later version. Although LION runs ok with 2GB RAM it does help to get 1GB + 2GB = 3GB. Even if you install 2 X 4GB you will only utilize 3GB. Installing a SSD seems to make no difference since the SATA bus is only 1.5GB/s. A good 5400rpm disk is good enough. I even run BootCamp and Windows 7. Works fine. Not fast but fine. My A1212 refuses to die :-)

    asle -

    There seems to be some discrepancy about whether or not installing a SSD will help. See Phil's earlier comment from October 2015: there, *he* claims that having an SSD increases the load times significantly, (even though -- of course -- 1.5Gbps is not ideal)...

    His quotation, (re-)cited integrally:

    Just replaced my old HD with a Corsair Force LX SSD (which is SATA 1-3 compatible as required by this model) with success now my old 'outdated' laptop has super fast loading times and is postively flying faster than the speed of 'sound'. Thanks for the guide. Only problem I faced was replacing the top panel which after a few minutes of panic realised the rubber mounted Mic next to the left speaker had risen up when I had removed the top panel so after carefully pushing it back into place the panel fitted back how it should, so beware of this possible problem.

    Phil - 10/07/2015

    at0gjm -

    Bonjour j'ai besoin de cette bactérie que dois-je faire ?

    basile kouamé YAO -

  2. HsUpwplSeoYxfAZT

    • Remove the four identical Phillips 3.4 mm screws from the memory door. These screws have 4 mm diameter heads rather than the 3 mm heads on the body screws.

  3. 1k2Wi6HlKV5VrdgH

    • Lift the memory door up enough to get a grip on it, and slide it toward you, pulling it away from the casing.

  4. WKwoXwvApSbynKjr

    • Remove the three Phillips screws in the battery compartment near the latch. Apple was nice enough to tilt these screws at a slight angle to make them easier to remove. On the A1261 these screws have 4 mm diameter heads rather than the 3 mm heads on the body screws.

    One of the screws here wouldn't bite going back in. I'm 100% certain it's the same screw that came out of it but it wouldn't bite going back, neither would any of the other two in this section in that particular hole.

    Damon B -

    To Damon - possibly the thread on the bottom of the upper case is obstructed.

    I found that I needed to fight the latch magnet with the right-most screw in the photo. The screw was pulled away from the hole so a magnetized screwdriver was not enough to place it. I needed tweezers to hold the screw in place until it bit.

    Yishai Sered -

    No, these screws won’t bite going back in — struggled for an hour. Lost hope of success.

    Case screw holes perfectly lined-up, neatly closed body, screw threads/head are fine (Apple quality screws), perfect screwdriver.

    The left one is in, other two simply will not bite whatsoever. Slightly irritating eventually turned to madly infuriating. I have a similar, earlier model and that was smooth to replace these exact, slightly angled screws (so I have experience).

    Q: Are the centre and right-hand screws absolutely essential — or can I give up and leave them out?

    (By the time you read this, that’s what I’ll have done)(out of sheer frustration)

    Steve Arkwright -

  5. YAspW4EEkCJRDsKl

    • Remove the following six screws:

    • Two 14.5 mm T6 Torx screws on either side of the RAM slot.

    • Four 3.4 mm Phillips screws along the hinge.

    Note for re-assembly: For the hinge use the longest four Phillips screws.

    R L -

    The Philips screws in Step 5 are longer than the other Philips screws. Would be better if the instructions differentiated them. Otherwise it is possible to use the wrong screws in Step 7 when reassembling.

    Alex -

    These instructions are actually wrong. The 14.5 mm screws are for along the hinge, the 2 on either side of the RAM slot are about 10 mm.

    Andrew Patterson -

  6. 23e4TihsxnA3YS1D

    • Remove the four 3.4 mm Phillips screws on the port side of the computer.

    When reassembling, please be careful not to screw into the wrong spot. I accidentally screwed into the DVI port and it was hard to remove the screw after that. I had to disassemble the whole thing again, only to find that I couldn't remove the screw from within as it was encased. After much scraping and prodding with a sewing needle, I was able to get that screw out. Phew!

    isotope434 -

  7. Dq4YYMmEB13YHvA2

    • Rotate the computer 90 degrees and remove the two Phillips screws from the rear of the computer.

    Screw on the right is shorter

    mikefal -

    What are these two screws called?

    ian -

  8. rrRpmdNyglq1mYXy

    • Rotate the computer 90 degrees again and remove the four Phillips screws from the side of the computer.

  9. VlILCxOuvQBBOu6Z

    • Do not yank the upper case off quickly. The case is attached to the logic board via a ribbon cable.

    • Lift up the back of the case and work your fingers along the sides, freeing the case as you go. Once you have freed the sides, you may need to rock the case up and down to free the front of the upper case.

    WOW this step is very hard!!! its a serious suction cup..

    nya -

    Once the upper case is free...Carefully tilt the upper case from the front towards the screen as their is a ribbon cable directly beneath the keyboard and trackpad that will need to be removed in the next step.

    Troy -

    Be very careful not to bend the screw tabs on the top case the perimeter screws attach to. Bending them causes them to quickly fatigue and potentially break off. When reassembling the top case, be sure the tabs are all *inside* the case before reseating it. If you get resistance, pull the case back up, check the tabs and reseat the top case again.

    Sheldon Carpenter -

  10. CKcJBnPVxu3JFxFu

    • Disconnect the trackpad and keyboard ribbon cable from the logic board.

    • Remove the upper case.

    Disconnecting this cable is optional, if instead you tip up the top case ~75 degrees, propping it up with something non-metalic (wedged in or by the battery compartment). Unplugging a connector from the main circuit board always carries slight additional risk.

    amiller770 -

    It's not really necessary to disconnect the trackboard/keyboard ribbon cable. You can simply lean the upper case against the LCD.

    Russ Greene -

    how reconnect this cable?

    anatole -

    I did this with and without step 10 (removing the upper case with detached cable). Removing the cable is risk, putting it back on was not so easy. But then, leaning the keyboard part against the LCD while replacing the hard drive is also risky.

    tobybaier -

    After having successfully removed/reattached the ribbon cable several times while trying to revive this computer for back-up use the securing/release tabs on the connector broke. The connector then will not hold the cable properly and connecting fails. Tried various methods of propping the cable in the connector to get full contact but eventually all efforts failed, too. Result: essentially a dead motherboard as no replacement for the connector seems available. Sadly, not worth the extra effort to try further repairs.

    Steve colton -

  11. oGWbeWD3pbaGsZRa
    oGWbeWD3pbaGsZRa
    OIQIbOxCDXNeMBAy
    BNTQyoqaOSSTht6J

    • Disconnect the two antenna cables attached to the AirPort Extreme card.

    • The cable with the gray shielding attaches to the left side connector, while the cable with the white shielding attaches to the right side.

    • If you have a MacBook Pro 17" Model A1229 or A1212, there are three antenna cables attached to the AirPort Extreme card instead of two.

    • If you have a MacBook Pro 17” Model A1261 the cable with the black shielding attaches to the left side of the connector, while the cable with blue shielding attaches to the right side.

  12. QYfqjyHSqYs3wR15

    • Remove the single black T6 Torx screw from the top right corner of the AirPort Extreme card.

  13. FRM2xAuWJGrUecZU

    • Lift the AirPort Extreme card up and slide it out of its connector.

    • Note the position of the grounding clip attached to the left side of the card. On some models, the clip is mounted on the upper surface of the airport Extreme card to make contact with the upper case. On other models, the clip is mounted on the underside and makes contact with the headphone connector body.

  14. uedIcAAq3DnLfDe5

    • Remove the two silver T6 Torx screws from the top left and bottom right corners of the left speaker assembly.

    • The magnet in the MagSafe connector may pull the upper screw towards it after the screw has been freed.

    Be warned the 17"MacBook Pro bought in the UK which I was dis-assembling had an additional T6 Torx screw to remove at the upper left side. viz. total of 3 silver T6 screws to remove at this stage.

    Conrad -

  15. OnUnmOSHWWPVTGaU

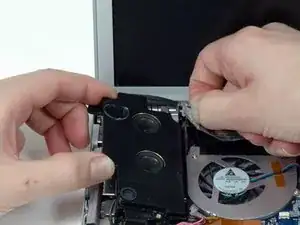

    • Lift up the left speaker assembly with one hand and deroute the inverter cable from the top right corner of the speaker assembly.

    • On model A1261 the speaker can be carefully pivoted by derouting the inverter cable.

    The speaker assembly is held down by two #6 Torx screws. One on the top left corner and one that goes through the fan

    sgianetti -

    sgianetti is right! As I was surprised that the speaker is held down by two screws.

    So, the manual should be updated I have according pictures if anyone needs them. Also, I didn't follow steps after 11 as I just pulled a bit the speaker and removed #6 Torx screw under it. Afterward I removed last two #6 Torx screws that held the fan and replaced it with new one!

    Thanks for the manual! I was not able to make it without iFixIt.

    kxalex -

    Still unsure what is meant here by derouting the inverter cable. This was not something that I needed to do on the 17"MacBook Pro bought in the UK that I was dis-assembling.

    Conrad -

    On Macbook 17' model A1261, the invert cable does not need to be derouted and the speaker can be carefully pivoted to expose the fan torx screw without removing it.

    hawc2k -

  16. IRNZVwRgoUMWYZfb

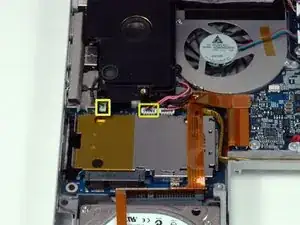

    • Disconnect the pink and black left speaker assembly cable from the left I/O board. Be sure to pull only on the white connector and not on the speaker wires.

    • Disconnect the microphone cable connector from the left I/O board.

    • Remove the left speaker/microphone assembly from the lower case.

    I didn't completely remove the entire speaker assembly or unplug any of the connections. Just unscrewing the torx screws allowed me to lift the speaker out of the way to access the screw to remove the fan.

    Sheldon Carpenter -

  17. ZYRVPZLlZbremZQA
    ZYRVPZLlZbremZQA
    QT5HZrBna5hmG24Z
    n6W4Ie6lORQMCHUS

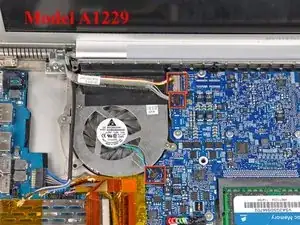

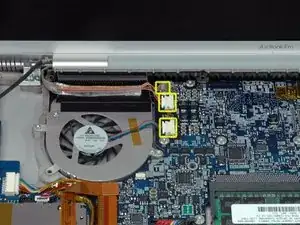

    • Disconnect the iSight, inverter, and left fan cables from the left side of the logic board.

    • Take care not to dislodge the EMI gasket on the silver iSight connector.

    • If you have a MacBook Pro 17" Model A1229, the iSight, inverter, and left fan cables have different composures and locations.

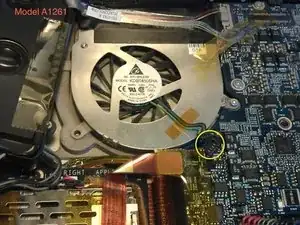

    • For model A1261, the fan cable is located in the same location as the model A1229, 5 o'clock to the fan. The iSight and inverter can remain connected. Lift the tape from the top of the fan and make sure to check the connections afterward.

    ATTENTION for MacBook Pro 17" Model A1212:

    If the 2 connectors shown in step 17 are black instead of white: They have to be disconnected by lifting them up, not by sliding them to the left side, as it looks like they would plug off! I used a spudger to go under the 4 cables close to the connector and lifted the cables with the connector gently up. No force needed.

    MBPTom -

    Be extremely careful with the step 17 disconnecting the cable if the connecto is at 5 from the fun and black. Very weak and easy to break. Tell me about it... Now, I have no idea of how to fix this connector...

    juanmanuelolmossuarez -

    I too broke off the connector, thinking that it lifted up. Has anyone fixed this? I want to get a soldering iron to try and resolder it back to the board, but have little experience doing this. My laptop still works, but the left fan is non functional now. Does ifixit sell a replacement part for that? I'm gonna try to repair it as the macbook is pretty old and I'm due for a new comp, but I'll wait until I buy a replacement before I try and fix this one.

    seansheehey -

    I too, with A1261, broke off 4 small pieces of wire that connector attached to, unlike picture shown. It appears several other connectors are similarly made, so I will have a non-functioning left fan until I find how to repair or replace. Was going to repair right fan also, but now am putting back together until find better info. or way to repair the connection.

    Appears to fix will have to replace complete logic board, at the very least completely disassembled to be able to replace and re-solder the 4 small wires for connection to board.

    kenlong -

  18. pF1Jd25o43ikICBJ

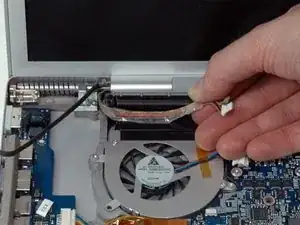

    • Peel up the iSight and inverter cables which are attached with a mild adhesive above the left fan.

    • The iSight and inverter cable can optionally remain connected.

    The adhesive on a couple of MacBook Pros I've worked on were far from mild. Perhaps age makes the adhesive more aggressive, but be careful pulling it up. I worked mine from both ends.

    Sheldon Carpenter -

  19. FtYRJ2onxHSTPQqk

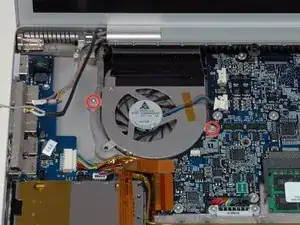

    • Remove the two silver T6 Torx screws securing the left fan to the lower case.

  20. IJuf2WHLlYIZUCSB
    IJuf2WHLlYIZUCSB
    SDHKLOQb4hfwwooa

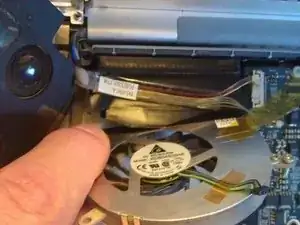

    • Lift the left fan and its metal bracket out of the computer.

    • The tape that covers the top of the fan can be reused if the fan is removed carefully. Pivot the fan towards the screen and very slowly pull bottom of the fan away from the tape from left to right. It should peel off without stretching if done slowly. Then slide the new fan under the tape and press the tape back on the top of the fan.

    If this is your first time changing your fan, be prepared to clean the fan grille. It is probably choked with dust lint from years of use. The computer will now run a lot cooler

    sgianetti -

    At this stage it is possible to dis-assemble the fan into 3 pieces and clean and lube it thus removing the need of having to buy a new one! I recommend the following site for advice -

    http://nofilmschool.com/2009/02/how-to-f...

    Conrad -

    YES!!! I just did that. works perfectly.

    fanclub -

    There is black tape holding the fan to the exhaust fins. Use a razor knife to cut this tape at the seam between the exhaust and the fins.

    When replacing the new fan use 1.5cm Kapton tape to seal the fan to the housing. DO NOT USE ELECTRICAL TAPE. Electrical tape's adhesive composition is not suitable for the high-temp environment of the inside of a MacBook.

    Alternatively the tape can be carefully peeled back from the fan and reused, but it gets a bit stretched out.

    Sheldon Carpenter -

    My A1229 laptop's black tape would not reseal. 3M sells double sided copper adhesive tape as part #1182. The tape also improves thermal transfer to the heat sink. Slip a piece between the new fan and the old black tape.

    John Figueroa -

Conclusion

To reassemble your device, follow these instructions in reverse order.
