Logitech G29 Driving Force Pedal Replacement

Written By: Brock Harris
  • Comments: 3
Logitech G29 Driving Force Pedal Replacement

Difficulty

Moderate

Steps

6

Time Required

25 minutes

Introduction

This replacement is not bad other than the fact there are a ton of screws. With a little soldering knowledge and fixing knowledge this guide will take you through the steps needed to replace a pedal.

  1. AVKVgvlqlhYtEOCa

    • Start by removing the twelve #1 Phillips screws that secure the bottom cover to the pedals.

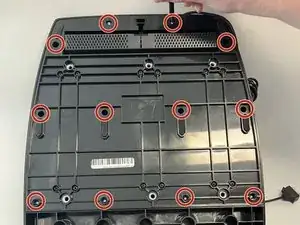

  2. 1TKG16YbYYUAonBL

    • Remove the remaining twelve #0 Phillips screws from the bottom cover.

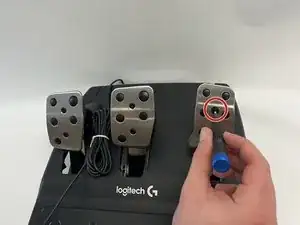

  3. 5RWGJEiJJCcAvcP1

    • For the last Couple screws remove the 2, 2.5 Allans located on the pedals.

    • I would suggest only taking the 2 Allans out of the pedal that needs fixing. All others can stay

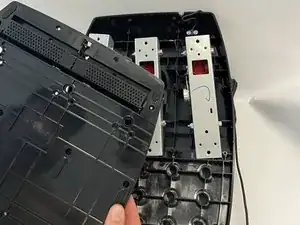

  4. Z4T5iQPSchOWd1SO

    • Now that all screws are loose the back plate should be able to be removed reviling the pedals.

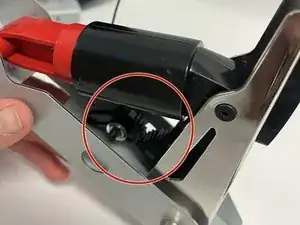

  5. wauiCOe5IxfWm4km

    • If pedal is unresponsive start by checking the gear mesh.

    • If gear mesh is not connecting check to make sure everything is tight.

    • If gears are stripped or broken off get replacement gears.

  6. yZJmUigeUxXmy4RE

    • If gears are fine check wire connections.

    • If red wires are loose resouder and make sure the connection is good.

    • If the black ground wire is loose, tighten up.

    • If none of these fix the problem go ahead and source a new pedal to install.

    What do you mean resolder

    Ranveer -

Conclusion

To reassemble your device, follow these instructions in reverse order.
