Little Wonder GX270 Honda Maximum Output Blower Fan Replacement

Written By: Sam Omiotek
  • Comments: 1
Little Wonder GX270 Honda Maximum Output Blower Fan Replacement

Difficulty

Moderate

Steps

11

Time Required

30 minutes - 1 hour

Introduction

Follow this guide to replace the fan on a Little Wonder GX270 blower with Honda engine.

  1. SeJ4hTxQOoBO6OBj
    SeJ4hTxQOoBO6OBj
    uafIUiYaqVl41Alw

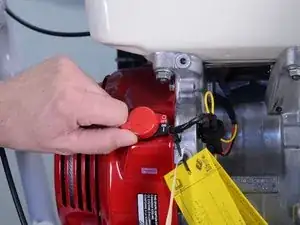

    • Before you begin, ensure that the engine is off and cool to the touch.

  2. MpWuTOhekHyGPQGX
    MpWuTOhekHyGPQGX
    Qar1yHPjWySqrGiY

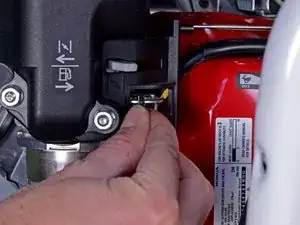

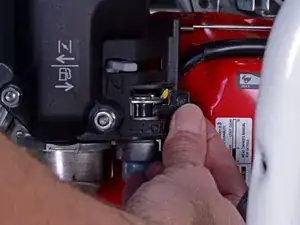

    • Locate the gas cutoff valve and flip the switch to the left to shut it.

    Hi ,,, Hve a good day

    Mack -

  3. 2cXOSLfd1KhrxvaH
    2cXOSLfd1KhrxvaH
    GcdUJkIMmtF1pDBT

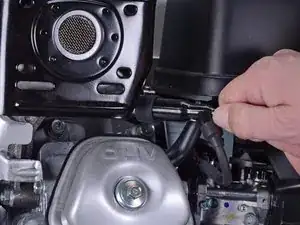

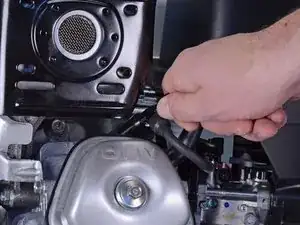

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  4. slyTXdZdVDBV6rYt

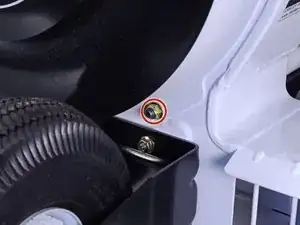

    • Use a 1/2 inch wrench to remove the intake guard bolt behind the front wheel.

  5. 1pkbevASZuqAjB6x
    1pkbevASZuqAjB6x
    OwX11JJfr1VYkyYr

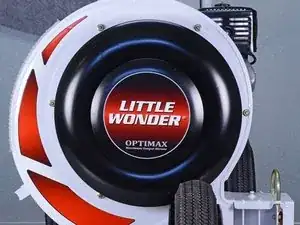

    • Use a 1/2 inch socket to remove the five bolts securing the intake guard.

  6. BUKOUZoEJNL4feEg
    BUKOUZoEJNL4feEg
    uJUToCctemkiViYE

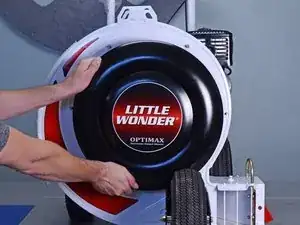

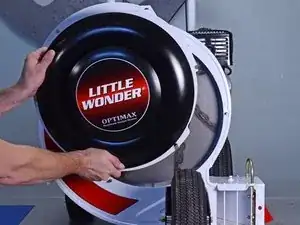

    • Remove the intake guard.

  7. SBUJqAATMhjGqjGP
    SBUJqAATMhjGqjGP
    tMGUIXguYNXFYSjy

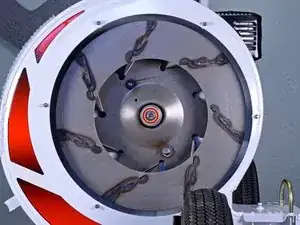

    • Use an impact wrench to remove the 5/8 inch bolt securing the fan blade to the spindle.

  8. wyXtDJpfpcIvXo3p
    wyXtDJpfpcIvXo3p
    PPZNwaJL5IQGDaxI

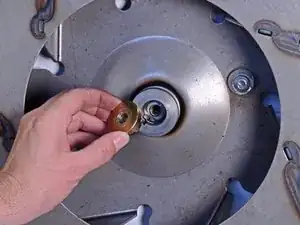

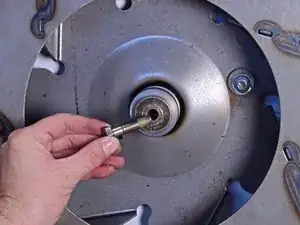

    • Remove the fan plug bolt and fan plug.

  9. 6wupb5eIApEXyOuI
    6wupb5eIApEXyOuI
    cqqGXPi5tUGHZyPQ

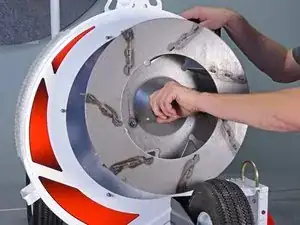

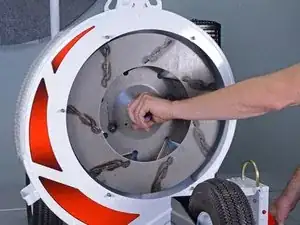

    • Remove the fan blade.

  10. aIilfDvVXhruRZuY
    aIilfDvVXhruRZuY
    mkOLPMPXIm1u1Qay

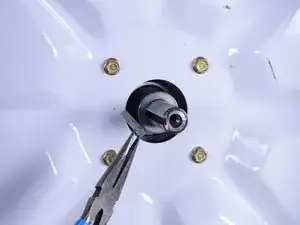

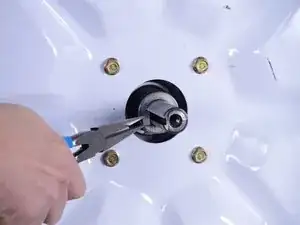

    • Use a pair of pliers to remove the key from the spindle.

  11. x1Aw4fiGc3SuKLEN
    x1Aw4fiGc3SuKLEN
    26qFvyZgAqSXqppH

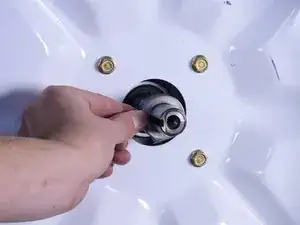

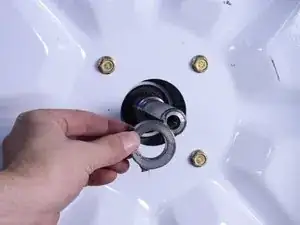

    • Remove the fan spacer.

    • Wipe the old grease off the spindle with a shop towel and apply new grease before installing the replacement parts.

Conclusion

To reassemble your device, follow these instructions in reverse order.
