Introduction

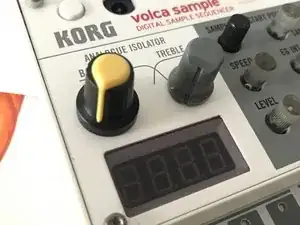

The analogue isolator pots on the Korg Volca sample are very fragile, they can break so easily.
The replacement part that you need is a 5-pin ALPS potentiometer which is impossible to find and purchase, or sold at very high prices (for a simple pot).
With this guide I will show a DIY solution to repair your filter pots on the device.
-
-
The VS service manual is impossible to find, but it is well known that the two filter pots are 10K ALPS potentiometers
-
By online search, you can find the KORG EM-1 service manual, which uses the same kind of pot for volume control
-
The pot is VR2, an ALPS RK09K12C 5-pin potentiometer
-

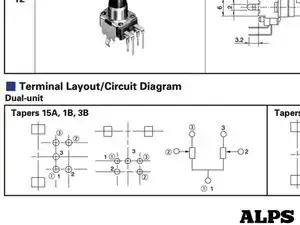

By searching on old ALPS datasheets, you can find the specs for the pot and the layout
-

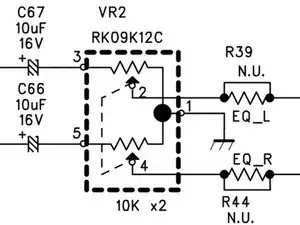

Looking at both the layout and the EM-1 schematic, we can see a shared ground (pin 1) and the remaining connections which form a dual wiper
-
-
-

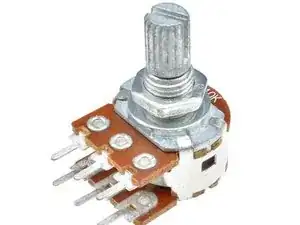

You will need a simple 10K stereo potentiometer with 6 pins
-
The ALPS is a 103B, which is a linear one. I used a LOG one which works anyway (it will have a different sweep compared to a linear)
-

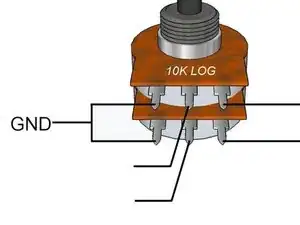

You will have to bridge the two 1-1' pins together to have a shared ground
-

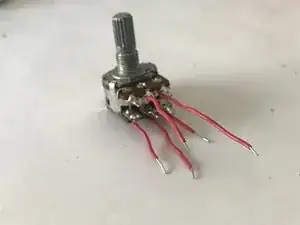

The next step is to solder 5 cables to the pins (only one is needed in the shared ground)
-
-
-

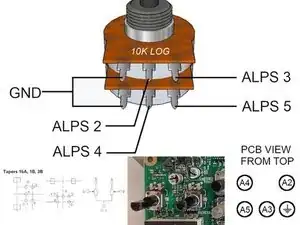

You'll have to follow the layout drawn in the image
-
Solder the 5 wires and reassemble the VS, then check if the pot is working
-
To reassemble the device, follow these instructions in reverse order.
