JBL On Stage II Speakers Replacement

Written By: Janessa D Cabrera
  • Comments: 11
JBL On Stage II Speakers Replacement

Difficulty

Difficult

Steps

9

Time Required

15 minutes

Introduction

First, the device will need to be cracked open. After, you will remove the damaged speakers and replace them with new, working speakers.

  1. XNBQOUwkOnKlgyju

    • Turn the device upside down so that the three rubber pads are facing up.

  2. evtleBdT1AwZwhnQ

    • Use a heat gun (set to low) to apply heat to one of the rubber pads until you can easily remove the pad. This step takes around 5-7 minutes.

  3. ociRwyABmjNInFF6

    • Remove the heated rubber pad with a plastic opening tool.

    • Repeat steps 2 and 3 for the two remaining rubber pads.

  4. ZLXFIbAsyrJdCoIB
    ZLXFIbAsyrJdCoIB
    BWFlYHkTgWrVAKgj

    • Remove the six 1cm T-10 torx screws on the bottom of the device (found under the rubber pads) using a T-10 Torx screwdriver.

  5. x4LUNYRigUdD1vwg
    x4LUNYRigUdD1vwg
    OoHxwohAVUQVDWZs
    nYTiEeKLFMilMXTn

    • Open the device along its seam.

    • Be careful when separating the device because there are wires connecting the two seperate halves.

  6. wfinOdi2QQmSx5vo

    • Disconnect the ribbon cable connector from the top half of the device by pulling outward and parallel to the connecting pins.

  7. hgg6CW31ZiRePHQ2
    hgg6CW31ZiRePHQ2
    OmM4bpyc23Kb34cZ

    • Locate and disconnect the two molex connectors found on either side of the ribbon cable connector on the bottom half of the device.

    Where do I find these speakers

    HighChief -

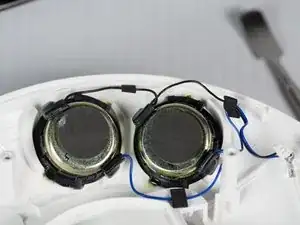

  8. FEgiCCKQIeYKqaVT
    FEgiCCKQIeYKqaVT

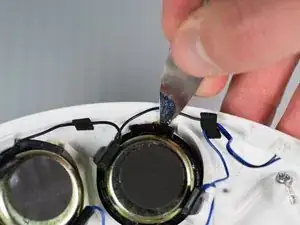

    UhVwCvWLUjxMYCrt

    • Separate speakers from their slots using a metal spudger.

    • Careful, as this step may cause damage to the device.

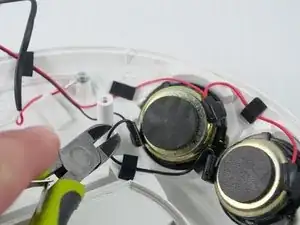

  9. a3F1jmAKEPAGrIiC
    a3F1jmAKEPAGrIiC

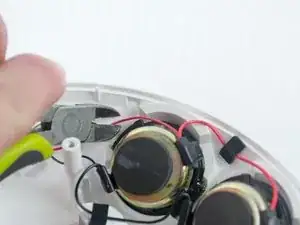

    QZ11oKFbaNP4hY4N

    • Cut the black wire (leading to the speaker you are replacing) with a pair of wire cutters.

    • Cut the red wire (leading to the speaker you are replacing) with a pair of wire cutters.

    • Notice that two black wires and two red wires connect to the speaker, be sure to reattach both wires to the new speaker.

    Where can I find the speakers for replacement just the speakers only

    HighChief -

    just pull of the plug, no need to cut the wires

    pikachu chuuu -

Conclusion

To reassemble your device, follow these directions in reverse order.
