Introduction

To complete this guide, you will need to disassemble your device and use a soldering iron to replace the power jack.

  1. XNBQOUwkOnKlgyju
    • Turn the device upside down so that the three rubber pads are facing up.

  2. evtleBdT1AwZwhnQ
    • Use a heat gun (set to low) to apply heat to one of the rubber pads until you can easily remove the pad. This step takes around 5-7 minutes.

  3. ociRwyABmjNInFF6
    • Remove the heated rubber pad with a plastic opening tool.

    • Repeat steps 2 and 3 for the two remaining rubber pads.

  4. ZLXFIbAsyrJdCoIB
    ZLXFIbAsyrJdCoIB
    BWFlYHkTgWrVAKgj
    • Remove the six 1cm T-10 torx screws on the bottom of the device (found under the rubber pads) using a T-10 Torx screwdriver.

  5. x4LUNYRigUdD1vwg
    x4LUNYRigUdD1vwg
    OoHxwohAVUQVDWZs
    nYTiEeKLFMilMXTn
    • Open the device along its seam.

    • Be careful when separating the device because there are wires connecting the two seperate halves.

  6. wfinOdi2QQmSx5vo
    • Disconnect the ribbon cable connector from the top half of the device by pulling outward and parallel to the connecting pins.

  7. hgg6CW31ZiRePHQ2
    hgg6CW31ZiRePHQ2
    OmM4bpyc23Kb34cZ
    • Locate and disconnect the two molex connectors found on either side of the ribbon cable connector on the bottom half of the device.

    Where do I find these speakers

    HighChief -

  8. 6wDRbydjF51Inj4p
    6wDRbydjF51Inj4p
    nh4xoHZhHhvmGxQr
    • Remove the three 1 cm T-10 Torx screws.

  9. ofr2BbXaCjkRnYmC
    • Carefully press out the white base tube and push up on the circuit board.

    • Note that there is a small wire connecting the circuit board to the base.

  10. peAJfiPgxHHQnA5X
    peAJfiPgxHHQnA5X
    O4a4o5BSlg4fsrZc
    • Pull the white wire out of the hot glue.

  11. VwRvnhf2II4CliXe
    VwRvnhf2II4CliXe
    p3pOweXJePWFakKU
    OSEyZ4FW5NDKo24G
    • Unbolt the heatsink with a 5.5-mm socket and a Phillips PH1 screwdriver.

    • Remove the heat sink; it should detach from the bottom of the device.

  12. ATEElaDJL5B5BLiX
    ATEElaDJL5B5BLiX
    LPeXS4Dp1cUeRNwE
    2KrQLQhW3cMrTIDJ
    • Remove the T-10 torx screw on the bottom of the device that attaches the base tube to the circuit board.

    • Turn the device so that the base tube is on top.

    • Remove the base tube by pulling up.

    • May need to cut the rubber adhesive between the base tube to the circuit board.

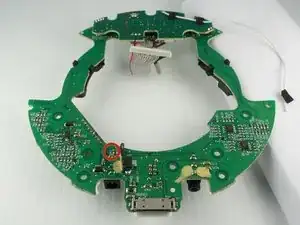

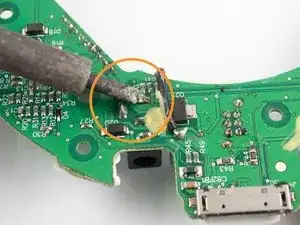

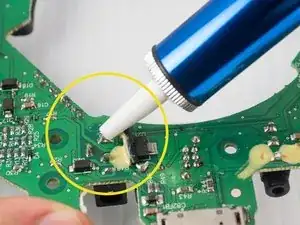

  13. UMkH5PZFOneggPPQ
    UMkH5PZFOneggPPQ
    eSFRJZITpOg1rmQS
    ZqpexHUlNqWnpfUm
    • Turn the device upside down.

    • Solder the back lead of the power jack until the solder melts.

    • Heat the lead until the solder melts.

    • Remove the solder with the desoldering pump.

    • For help with soldering view the iFixit soldering guide

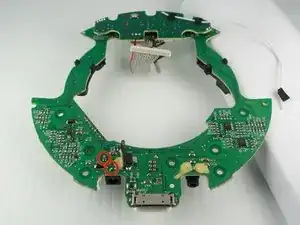

  14. uVBI6UXsckPTKL4K
    • Repeat step 13 for the other two leads

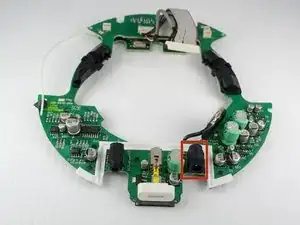

  15. GF6JOVWsCvU5SrxE
    • Remove the power jack.

Conclusion

Replace the power jack with the new jack and resolder the leads. Follow the steps in reverse order to reassemble your device
