JBL On Stage II Power Button Replacement

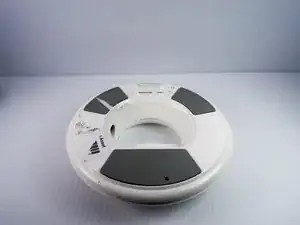

Turn the device upside down so that the three rubber pads are facing up.

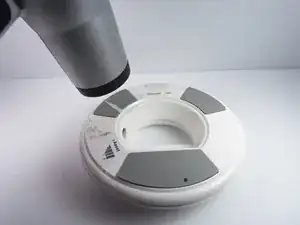

Use a heat gun (set to low) to apply heat to one of the rubber pads until you can easily remove the pad. This step takes around 5-7 minutes.

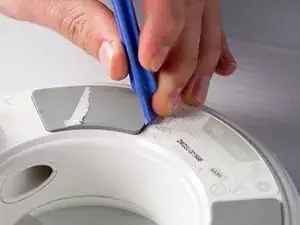

Remove the heated rubber pad with a plastic opening tool.

Repeat steps 2 and 3 for the two remaining rubber pads.

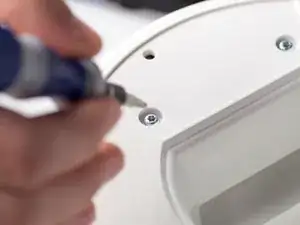

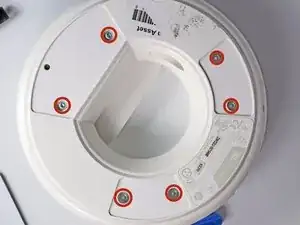

Remove the six 1cm T-10 torx screws on the bottom of the device (found under the rubber pads) using a T-10 Torx screwdriver.

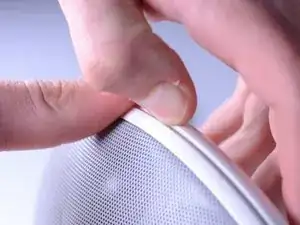

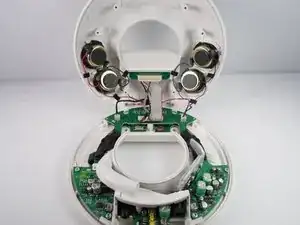

Open the device along its seam.

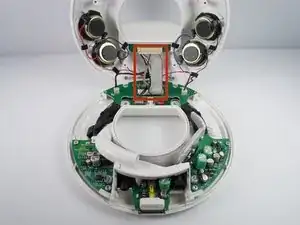

Disconnect the ribbon cable connector from the top half of the device by pulling outward and parallel to the connecting pins.

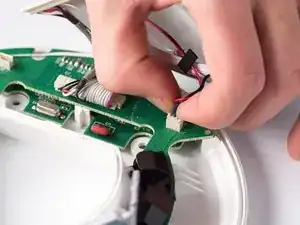

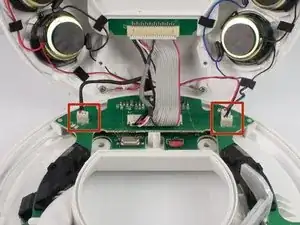

Locate and disconnect the two molex connectors found on either side of the ribbon cable connector on the bottom half of the device.

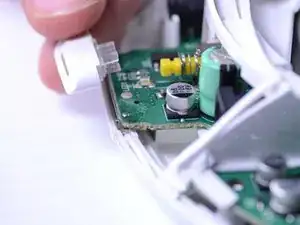

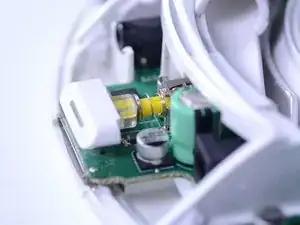

Pull the plastic button off the post.

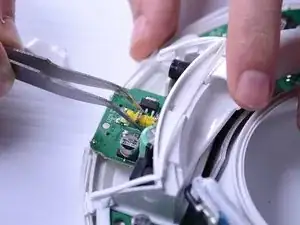

Remove the metal U-clip (compressing the spring) with tweezers.
