JBL On Stage II 30-Pin Connector Replacement

Written By: Janessa D Cabrera
  • Comments: 3
JBL On Stage II 30-Pin Connector Replacement

Difficulty

Difficult

Steps

10

Time Required

30 minutes

Introduction

This guide provides the steps necessary in order to replace the thirty-pin connector.

  1. XNBQOUwkOnKlgyju

    • Turn the device upside down so that the three rubber pads are facing up.

  2. evtleBdT1AwZwhnQ

    • Use a heat gun (set to low) to apply heat to one of the rubber pads until you can easily remove the pad. This step takes around 5-7 minutes.

  3. ociRwyABmjNInFF6

    • Remove the heated rubber pad with a plastic opening tool.

    • Repeat steps 2 and 3 for the two remaining rubber pads.

  4. ZLXFIbAsyrJdCoIB
    ZLXFIbAsyrJdCoIB
    BWFlYHkTgWrVAKgj

    • Remove the six 1cm T-10 torx screws on the bottom of the device (found under the rubber pads) using a T-10 Torx screwdriver.

  5. x4LUNYRigUdD1vwg
    x4LUNYRigUdD1vwg
    OoHxwohAVUQVDWZs
    nYTiEeKLFMilMXTn

    • Open the device along its seam.

    • Be careful when separating the device because there are wires connecting the two seperate halves.

  6. wfinOdi2QQmSx5vo

    • Disconnect the ribbon cable connector from the top half of the device by pulling outward and parallel to the connecting pins.

  7. hgg6CW31ZiRePHQ2
    hgg6CW31ZiRePHQ2
    OmM4bpyc23Kb34cZ

    • Locate and disconnect the two molex connectors found on either side of the ribbon cable connector on the bottom half of the device.

    Where do I find these speakers

    HighChief -

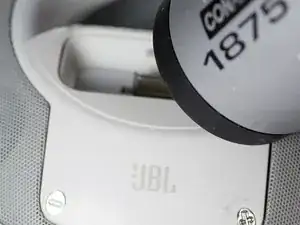

  8. NO6eCXMA4Zn3LfA5

    • Apply heat with a heatgun on a low setting to the area around the 30-pin connector until you can easily pry it out by the seam surrounding it (about 10 minutes).

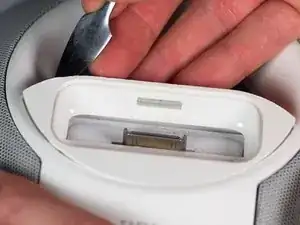

  9. FKM5KXKOdkutwXOM

    • Use a metal spudger to pry out the plastic surrounding the 30-pin connector.

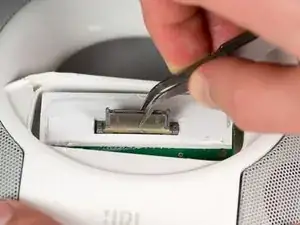

  10. gVM5sbxwhUL2q3n6

    • Use a pair of tweezers to wiggle out the 30-pin connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
