Introduction
Does your 1.9 TDI suddently sets out or fail to start and there are no events in the log ?
-
-
The engine suddently cut off very shortly (less than a second) while driving, mostly while maintaining level speed
-
You may be fast to observe the glow plug indicator lights up very briefly when the engine cuts off
-
The car may refuse to start when warm, not overheated, and then willingly start when cold again
-
You may hear a crackling sound when the temperature is below freezing and the glow-plugs has to be active for longer than usual
-
It can happen once or many times during a days driving - OR it happens only once a month - No schedule or pattern.
-
-
-

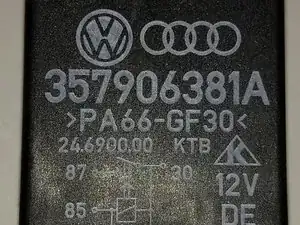

In my 1998 SEAT Toledo 1.9 TDI (90 HP) the relay with label 109 on the top was the culprit
-
Access the relay where the fuses are located. in my car it was in the drivers side behind the small glove compartment.
-

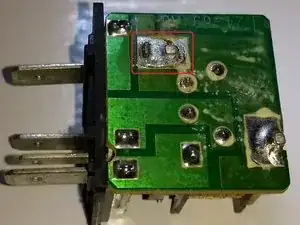

Talk about loose connections...See inside the red box of photo 1
-

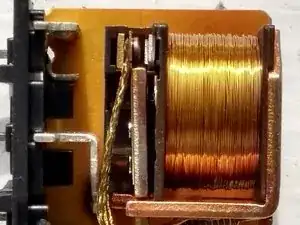

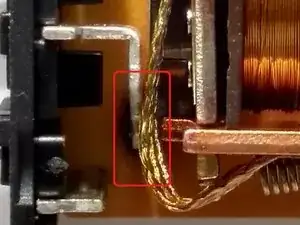

Secondly, the strip inside the relay barely touches the terminal. See photo 2
-
These two loose connections account for the erratic behaviour of the engine
-
The relay is worn out.....the copper-wire is yellowish to look at, compared to the more known copper-colored - replace the relay. Photo 3 does not clearly show it, but may get an idea
-
Buy a new relay, as used ones may be similar worn. Replace the relay and reassemble the lid to the fusebox
