Introduction

This guide shows you how to Replace a Filter on Whirlpool W10407342B side-by-side refrigerator.

Replacing your filter every six months is good both for the cleanliness of your refrigerator as well as your health.

Changing the filter is quick and easy. Make sure you buy a genuine Whirlpool water filter, as there are some DRM locks on third party filters.

  1. PNqobmYaQbpkKgfY
    PNqobmYaQbpkKgfY
    jXFUNHngd3gWkuAX
    whwvJMcKtvjMpny4

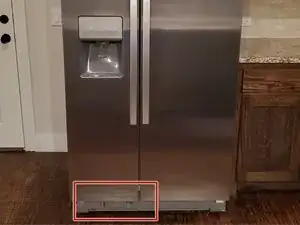

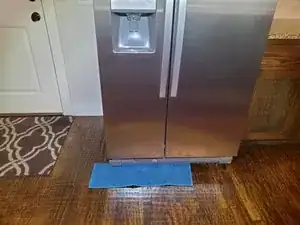

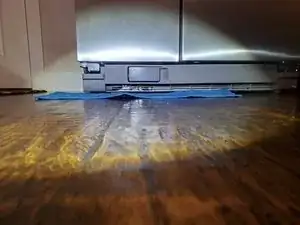

    • Place a towel under the water filter cover door at the base grille.

  2. nSAHEqfObuVgBArW
    nSAHEqfObuVgBArW
    5dmLmKZNSLOoYw3H
    fKYW2adHNgxeaUMf

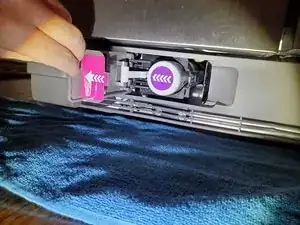

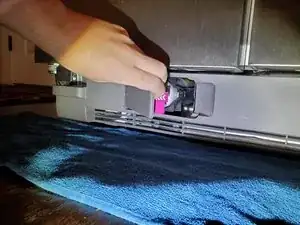

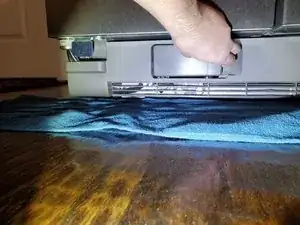

    • Open the filter cover door.

    • Once the door is open, the filter will eject out.

  3. pmUIgab63pVfwLEt
    pmUIgab63pVfwLEt
    ibws3OXUbZW4RP5f

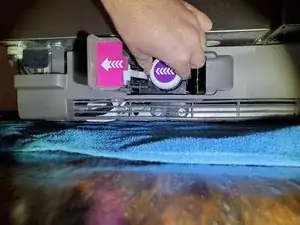

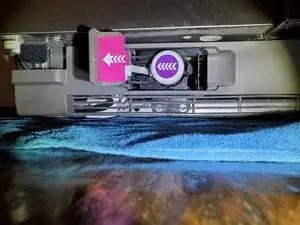

    • Open the door all the way and pull the filter out straight.

    • The filter might be wet so let it drip out on the towel a bit to avoid flinging water across your kitchen floors.

  4. wXhAklEGkeoKouIm
    wXhAklEGkeoKouIm
    W2AtI135nvPlockA
    pVRYaHaNnAM624FE

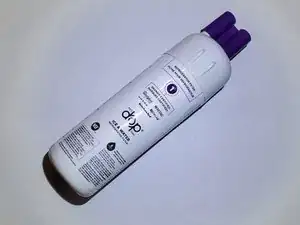

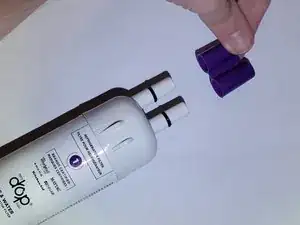

    • Remove the new filter from its packaging and take the coverings off the O-rings.

  5. VUtYARleZABMokcb
    VUtYARleZABMokcb
    Febu16UZCG4WU3AB
    f2fKHZbPqwILnUjN

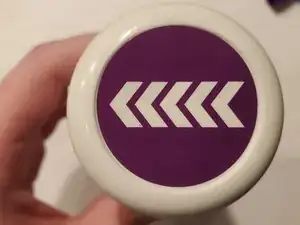

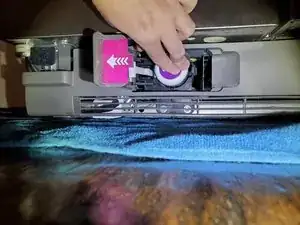

    • Point the arrow on the filter toward the left and slide it into the filter hole.

    • Doing so will cause the filter cover door to automatically begin closing.

  6. JJlFLBxPWwej4hFs
    JJlFLBxPWwej4hFs
    W1B3TsS2BB5dBwwy

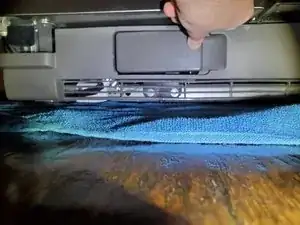

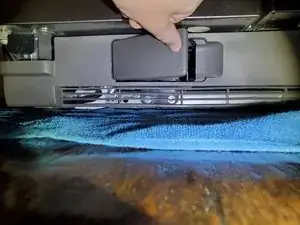

    • Close the filter cover door completely.

    • You may need to press hard to snap the filter into the right place.

  7. TOhXgsNMMTxrDIJV
    TOhXgsNMMTxrDIJV
    EmvJODvEMgyy4vaC
    p1pJCNt3gcbNtRIw

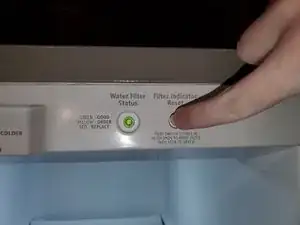

    • Push the filter indicator switch five times to reset the filter indicator to green.

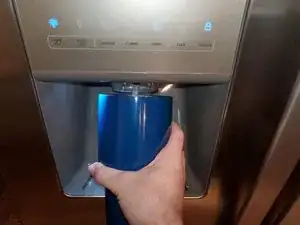

    • Using a sturdy container to catch the water, depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds.

    • Repeat until water begins to flow.

    • Once the water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on and 5 seconds off) until a total of 3 gallons had been dispensed.

Conclusion

You have successfully replaced the water filter on your Whirlpool W10407342B side-by-side refrigerator!
