Honda 6500 Watt Generator EG6500CL AT Automatic Voltage Regulator Replacement

Written By: Arthur Shi
  • Comments: 1
Honda 6500 Watt Generator EG6500CL AT Automatic Voltage Regulator Replacement

Difficulty

Moderate

Steps

8

Time Required

5 - 30 minutes

Introduction

This guide shows how to remove and replace the automatic voltage regulator module for the Honda 6500 Watt Generator EG6500CL AT.

  1. DmxWmIMhwA22AFBe
    DmxWmIMhwA22AFBe
    XBJ2c5RKBUW5ea1u

    • Before you work on the device, make sure to switch the engine off.

    • Switch the circuit breaker off.

  2. FdF22f2xXhCGrGpE
    FdF22f2xXhCGrGpE
    AG6kDCtri5JHyGkh

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  3. S1gJ5ahkvBXNmtZD
    S1gJ5ahkvBXNmtZD
    g6SVhTiJQDAQj3Dt

    • Twist the fuel valve clockwise into the cutoff position.

  4. ZPToSfWdNgR2DhBS

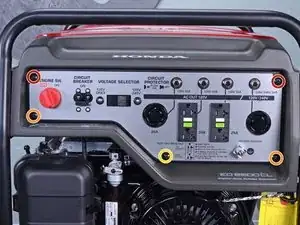

    • Remove the five Phillips screws securing the front panel:

    • Two 35 mm screws

    • Two 20 mm screws

    • One 15 mm screw

  5. MqLHIUHcEaWlcdUX
    MqLHIUHcEaWlcdUX
    1R5XqsWekOVCprql
    XwNq2CcIC6vJhKU2

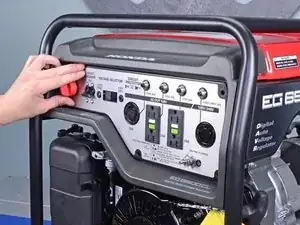

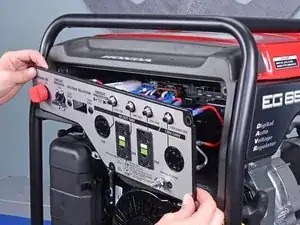

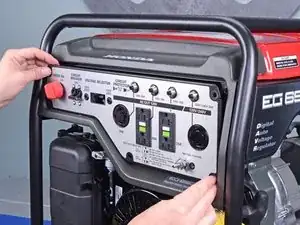

    • Carefully pull the front panel away from the generator in order to access the internal components.

    • Do not attempt to remove the panel—it is still connected by many wires.

  6. Q5TAQWQcBXgXXsrw
    Q5TAQWQcBXgXXsrw
    hmeJNBt4FpuUXyIB

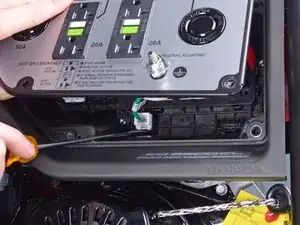

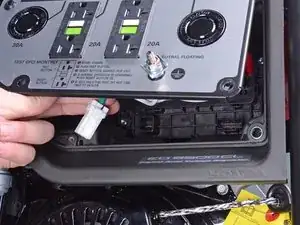

    • Use a flathead screwdriver to unclip the green ground wire from its socket.

  7. rMElEYEwX4NonSAf
    rMElEYEwX4NonSAf
    u2eYdrUtIZNdQTsL
    ZLe6AXNAXJHtDSBV

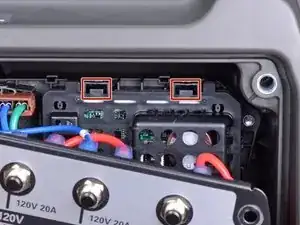

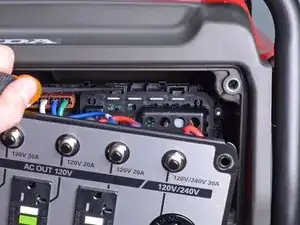

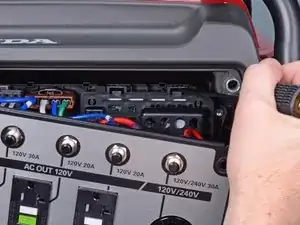

    • Use a flathead screwdriver to press and release the two plastic tabs securing the AVR module.

  8. FvVvBJkEAfscdgOc
    FvVvBJkEAfscdgOc
    Y5LXOUDFahAoTjYl
    WhWUBFlGvIKJuSNw

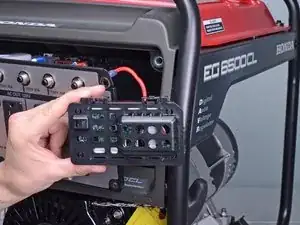

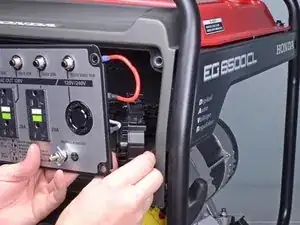

    • Carefully slide and remove the automatic voltage regulator out of its recess.

Conclusion

To reassemble your device, follow these instructions in reverse order.
