HP Color LaserJet Pro MFP M277dw Wireless Card Replacement

Written By: Christopher Fahey
  • Comments: 3
HP Color LaserJet Pro MFP M277dw Wireless Card Replacement

Difficulty

Easy

Steps

3

Time Required

5 - 10 minutes

Introduction

This guide will help you replace the wireless card in an HP Color LaserJet Pro MFP M277dw. You will need a plastic opening tool and a Phillips #2 screwdriver head.

  1. yUwsKM6uSSvuNWtx

    • Remove paper tray by pulling it straight out.

    • The tray should just slide out with little to no resistance.

  2. KddNQgAsUWBil1BQ
    KddNQgAsUWBil1BQ
    sFQnyQNiVGrwDrau
    GoQMue15MLicyaUu

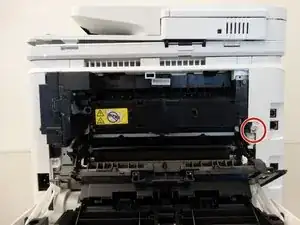

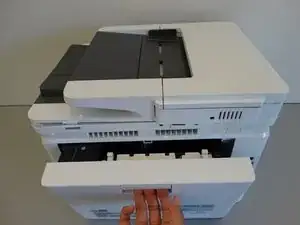

    • Lower the back panel by pulling it down from the upright position.

    • Remove one Phillips #2 10mm screw.

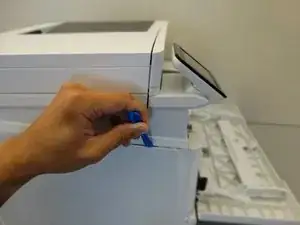

    • Use the plastic opening tool to remove the left side panel.

    • Flipping the printer onto its side makes it easier to remove the panel and access the motherboard.

  3. lEIShTonwNZfa4TI
    lEIShTonwNZfa4TI
    dNEK26dDhQIqcVGi

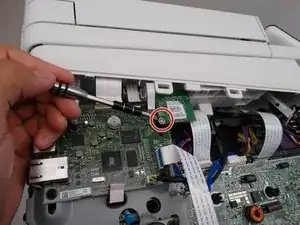

    • Remove one Phillips #2 11mm screw.

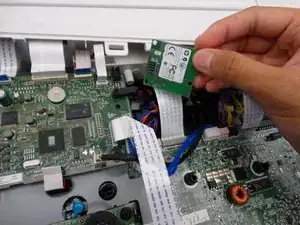

    • Remove the wireless card.

    • The wireless card is connected to the circuit board with pins, it will take a bit of force to remove it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
