Introduction
Use this guide to replace the air, fan, and HEPA filter on the HAMILTON-C1 to ensure maximum performance.
The fan filter must be replaced every month or as often as required, and the air and HEPA filter may be replaced yearly or as necessary.
Each filter in this guide may be replaced independently from the others, but the instructions have been integrated into one overarching guide as the preventative maintenance for the HAMILTON-C1. Refer to the individual replacement guides of the air and fan filter by clicking the links below:
Be sure to disconnect the HAMILTON-C1 from any external sources of power before beginning.
Tools
-
-
Turn the Hamilton-C1 so that the rear view of the device is facing you.
-

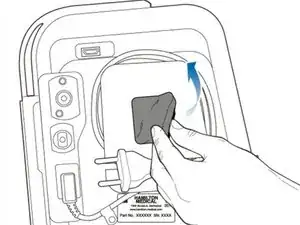

Use your fingers to grasp the current air filter located at number 4 of the graphic and pull the filter out of the slot.
-
-
-
Orient the Hamilton-C1 to the right side so that the gas connections are visible.
-

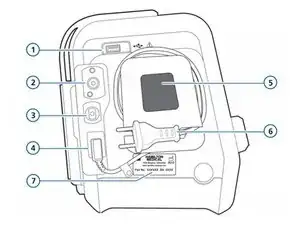

Grab and remove the fan filter located at location number 5 in the graphic.
-
-
-
Orient the Hamilton-C1 so the back is facing you.
-

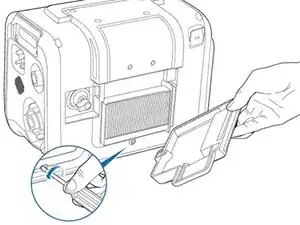

Remove the back panel as labeled by number 6 of the graphic using a Phillips #1 screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
