GameSir X2 Type-C USB-C Port Replacement

Written By: Zachary Hirsch

Comments: 1

GameSir X2 Type-C USB-C Port Replacement

Difficulty

Moderate

Steps

Time Required

5 - 7 minutes

Introduction

The USB-C Plug connects the mobile phone to the GameSir X2 Type-C and is the only source of connection from the mobile phone to the controller. GameSir designed the USB-C plug to pivot 51 degrees to prevent damage to mobile phone charging ports while inserting and removing the device.

If your phone fails to connect to the Gamesir X2 Type-C, the USB-C plug may need replaced. Follow this guide to replace the plug. Before replacing the plug, review the troubleshooting page. More than likely a bad connection can be fixed without replacing the USB-C plug.

Tools

Step 1

Turn the device so the back faces you.

Step 2

Remove the eight 6 mm T6 Torx screws.

Step 3

Use a straight edge to remove the rubber pad on the front of the device.

Step 4

Remove the four 4.5 mm screws with a Phillips #000 screwdriver.

Step 5

Use a straight edge to pry open the controller, following the seam on the controller.
Some force is necessary, but be careful not to damage any of the clips holding the controller together.

Step 6

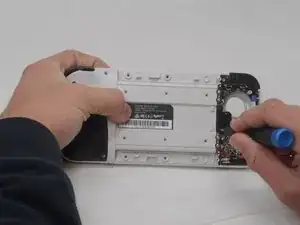

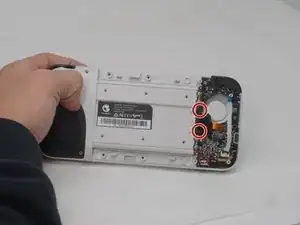

Remove the two 6mm Phillips head screws.

Step 7

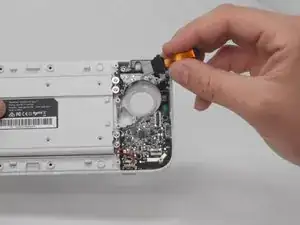

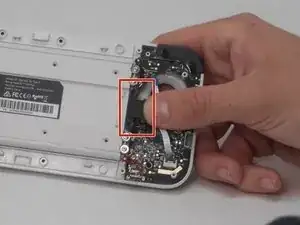

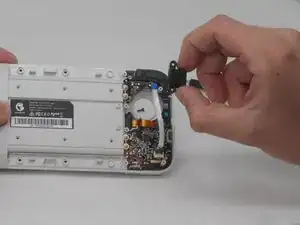

Gently remove the plastic bracket from the plug.

Step 8

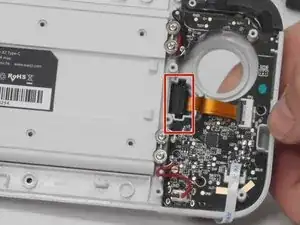

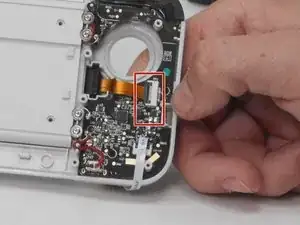

Identify where the ribbon wire connects to to the motherboard.

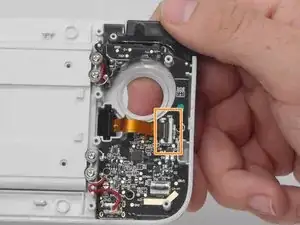

Flip the black locking ZIF flap holding the ribbon wire in place to the upward position.

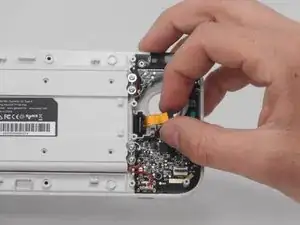

Gently remove the ribbon cable away from the motherboard socket.
