GameSir X2 Type-C Right Joystick Replacement

Written By: Malak Moustafa

Comments: 0

GameSir X2 Type-C Right Joystick Replacement

Difficulty

Moderate

Steps

Time Required

10 - 30 minutes

Introduction

The joystick is on the front of the GameSir X2 Type-C. It allows the user to create various outputs depending on the game the user is playing.

If you need to replace the right joystick on your GameSir X2 Type-C, you can do so by following this guide. You might need to replace your right joystick if it doesn't respond to input or has a lagging response. Check out the Troubleshooting Page to see if your right joystick needs to be replaced. Note that this guide doesn't apply to the left joystick. If you need to replace your left joystick refer to our Left Joystick Replacement Guide.

Tools

Step 1

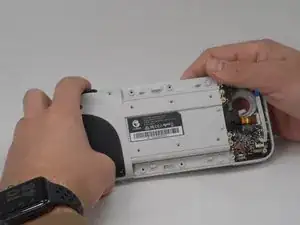

Turn the device so the back faces you.

Step 2

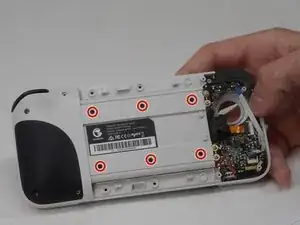

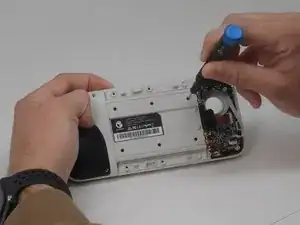

Remove the eight 6 mm T6 Torx screws.

Step 3

Use a straight edge to remove the rubber pad on the front of the device.

Step 4

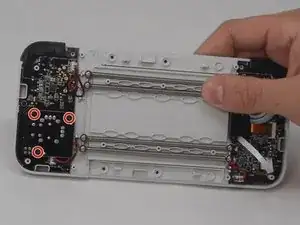

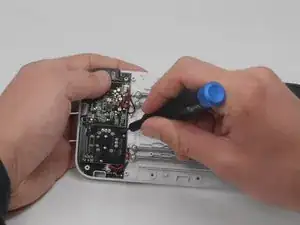

Remove the four 4.5 mm screws with a Phillips #000 screwdriver.

Step 5

Use a straight edge to pry open the controller, following the seam on the controller.
Some force is necessary, but be careful not to damage any of the clips holding the controller together.
