GameSir X2 Type-C Left Trigger Replacement

Written By: Zachary Hirsch
  • Comments: 0
GameSir X2 Type-C Left Trigger Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 30 minutes

Introduction

The trigger is a button on the top of the GameSir X2 Type-C. It allows a user to produce various outputs depending on the game the user is playing.

If you need to replace the left trigger on your controller, follow this replacement guide. Possible reasons for replacing the trigger would be if it is unresponsive to input or has a lagging response. Before replacing the trigger, review Troubleshooting Page.

  1. 2PWkiMXmOUoFnhxD
    2PWkiMXmOUoFnhxD
    YDAeRfwCIHKW6TCI

    • Turn the device so the back faces you.

  2. ysVJeqahtFiOxFM5
    ysVJeqahtFiOxFM5
    mNZLPCELpaV5sU2F

    • Remove the eight 6 mm T6 Torx screws.

  3. Qdql3cqF13CaS26q

    • Use a straight edge to remove the rubber pad on the front of the device.

  4. pDwUuXi2oQKR1xel
    pDwUuXi2oQKR1xel
    nviH4fdXqBZoxKBr

    • Remove the four 4.5 mm screws with a Phillips #000 screwdriver.

  5. nq1GHCAIlhebUWAR
    nq1GHCAIlhebUWAR
    HwxupxaFnEFlTDqi

    • Use a straight edge to pry open the controller, following the seam on the controller.

    • Some force is necessary, but be careful not to damage any of the clips holding the controller together.

  6. 2mWRZWilrTEGaxQy
    2mWRZWilrTEGaxQy
    QMHWkTt6jtTCXVlV

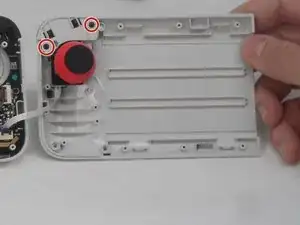

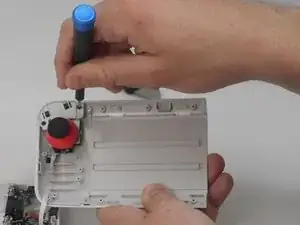

    • Remove the two 6mm screws that secure the trigger assembly with a Phillips #000 screwdriver.

  7. YSXbja6JUPtFXLOA
    YSXbja6JUPtFXLOA
    PlCeXaklhTL5dqNT

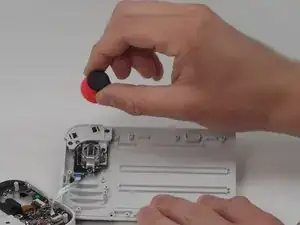

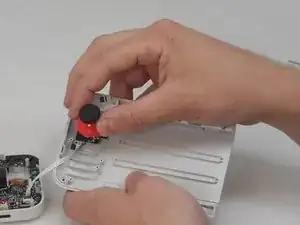

    • Remove the joystick cover.

  8. OFBDbyo2OXlHsPQe
    OFBDbyo2OXlHsPQe
    X3hBPELuWI2FrSxk

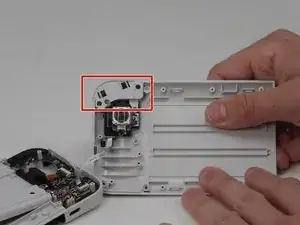

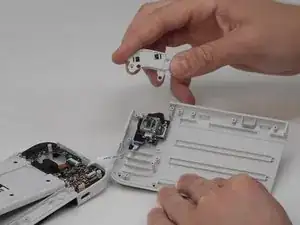

    • Lift the trigger assembly away from the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
