Introduction

If you need to open or replace the back cover of the GameSir X2 Type-C, use this guide. This guide provides access to the left joystick and trigger assembly. This guide is a pre-requisite for most replacements inside the housing of the device.

  1. 2PWkiMXmOUoFnhxD
    2PWkiMXmOUoFnhxD
    YDAeRfwCIHKW6TCI

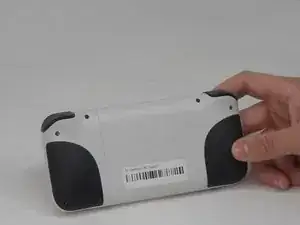

    • Turn the device so the back faces you.

  2. ysVJeqahtFiOxFM5
    ysVJeqahtFiOxFM5
    mNZLPCELpaV5sU2F

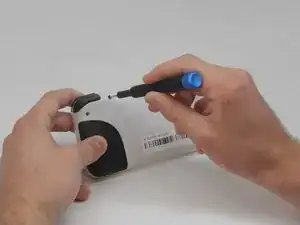

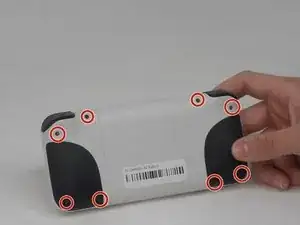

    • Remove the eight 6 mm T6 Torx screws.

  3. Qdql3cqF13CaS26q

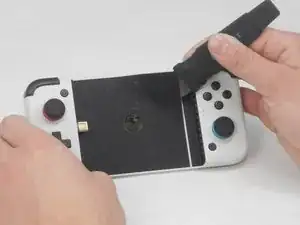

    • Use a straight edge to remove the rubber pad on the front of the device.

  4. pDwUuXi2oQKR1xel
    pDwUuXi2oQKR1xel
    nviH4fdXqBZoxKBr

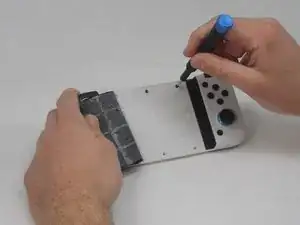

    • Remove the four 4.5 mm screws with a Phillips #000 screwdriver.

  5. nq1GHCAIlhebUWAR
    nq1GHCAIlhebUWAR
    HwxupxaFnEFlTDqi

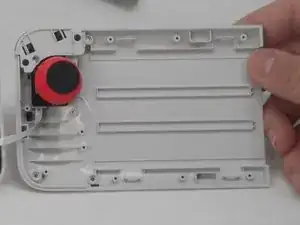

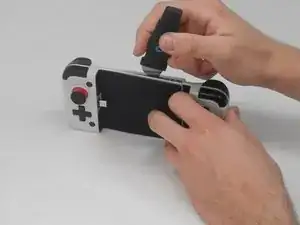

    • Use a straight edge to pry open the controller, following the seam on the controller.

    • Some force is necessary, but be careful not to damage any of the clips holding the controller together.

Conclusion

To reassemble your device, follow these instructions in reverse order.
