Frigidaire Side-By-Side Refrigerator Water Filter Replacement

Written By: Bill Gilbert
  • Comments: 0
Frigidaire Side-By-Side Refrigerator Water Filter Replacement

Difficulty

Very easy

Steps

3

Time Required

8 - 10 minutes

Introduction

Use this guide to replace the water filter on your Frigidaire refrigerator.

The water filter removes contaminants from the fridge's water supply.

If the filter is not changed at appropriate intervals, you may experience slow water flow, poor-tasting water from the dispenser, and low or no ice production.

  1. IySkRjvbHQAAT522
    IySkRjvbHQAAT522
    vBohBUYxYKS2LpJW
    lQNKEX6W1GZt3beM

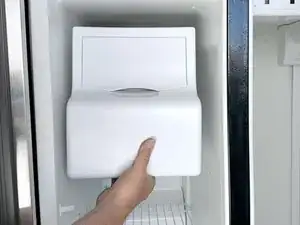

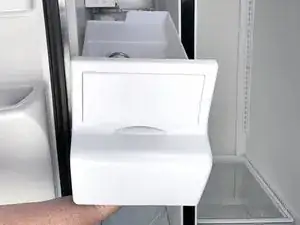

    • Lift the lower front of the ice bucket slightly and pull it toward you to remove it.

    • Shut off the ice maker by lifting the control arm upward as shown on the cover of the ice maker.

    • The control arm is shown in in the photo in the off position (lifted up).

  2. OfPsWel3aVYa5trn
    OfPsWel3aVYa5trn
    bNjGhFK1eKb2WIFI
    EtNlCCjRGNIehQ1j

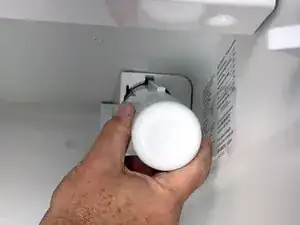

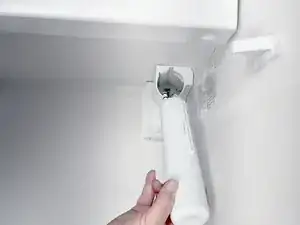

    • Push in on the end of the water filter cartridge to release it.

    • Pull the cartridge straight out and discard it.

    • Unwrap the new cartridge. Install it by pushing it into the receptacle toward the rear of the refrigerator until you hear it click into place. The ridge on the side of the cartridge should fit in the notch on the rim of the receptacle.

    • Dispense a glass of water and check the filter receptacle area for leaks.

    • Flush the system for about 4-5 minutes. Run the water from the dispenser into a container.

    • A used gallon jug and a funnel may be useful for collecting the flushed water, which should be about 2 gallons.

    • Turn the ice maker back on. You may wish to discard the first batch of ice.

Conclusion

To reassemble your device, follow these instructions in reverse order.
