Filter Housing Replacement for GE Refrigerators model GSS25KSW / GSF25KGW

Written By: Giancarlo Marruffo
  • Comments: 0
Filter Housing Replacement for GE Refrigerators model GSS25KSW / GSF25KGW

Difficulty

Easy

Steps

8

Time Required

20 minutes

Introduction

Simple step-by-step instructions to replace the Refrigerator Water Filter Head & Tube Assembly WR17X12203.

  1. eRiVU143jno1xDv6

    • Disconnect the electric plug from the wall.

  2. UtSPyncE1NGnWBcJ

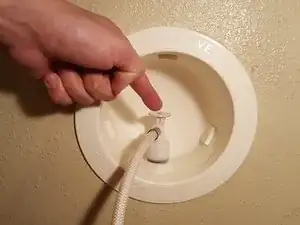

    • Turn off or push down off water main valve from the wall.

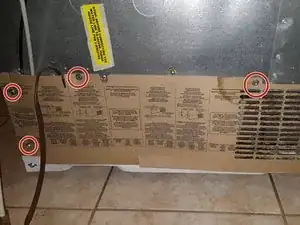

  3. YuOlyIMC5mW6qQxa
    YuOlyIMC5mW6qQxa
    QpyU5LUc1jce5BqO
    BiTkejZSdiOr4cmj

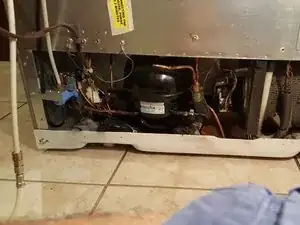

    • Remove the back panel with 6 screws from the back panel using a 8 mm nut driver.

  4. dhgyuAUGERGbIktE
    dhgyuAUGERGbIktE
    NGOA2QkbFUrWHQnK

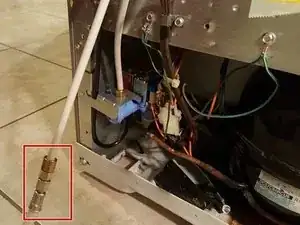

    • Disconnect the water supplied line from the refrigerator using two 13 mm open-end wrenches.

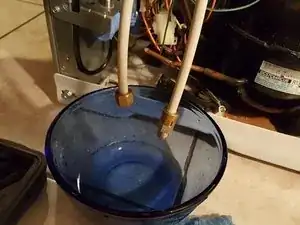

    • Use a little bucket to receive the water from the water lines.

  5. ENDMcnWJqy1ZS5mr

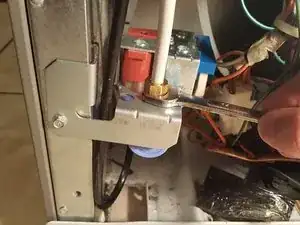

    • Disconnect the water line from the water inlet valve using and open-end wrench size 15mm

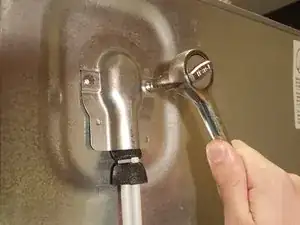

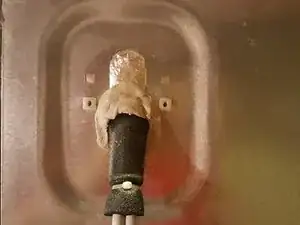

  6. sfmrEQtxFkJQY2TP
    sfmrEQtxFkJQY2TP
    OvyRAuURRBFXqDFy

    • Disconnect the water line cover removing 2 screws using a 7 mm nut driver.

    • Pull up the gum seal compound.

  7. m5LnYrhZK2mf3hxM

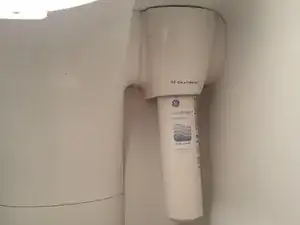

    • Push the left side of the filter cover and pull it straight out.

  8. uPgK1XOOldlFDDuJ
    uPgK1XOOldlFDDuJ
    GKIQCDkCEwZWL1ZQ

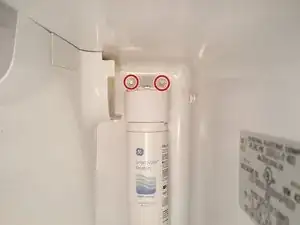

    • Remove the 2 screws on top of the housing using 7 mm nut driver.

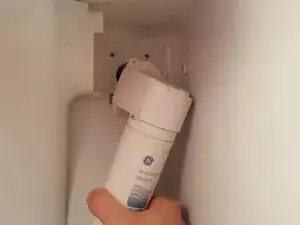

    • Pull the housing and filter out slowly.

    • Remove the filter by turn it counterclockwise

Conclusion

To reassemble your device, follow these instructions in reverse order.
