Introduction

Use this guide to replace the plastic outer shell that surrounds the charging core for your Fairphone Fairbuds.

  1. DbkeYQJEGliH6WrS
    DbkeYQJEGliH6WrS
    aXPWs6AtDGYKYKPd

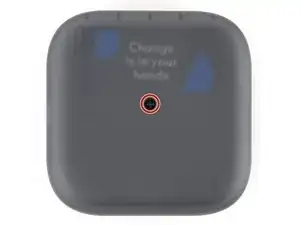

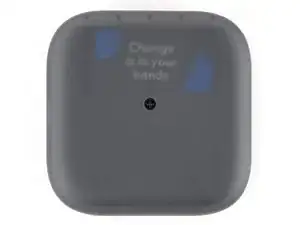

    • Flip your charging case upside down.

    • Use a Phillips screwdriver to remove the 4.5 mm‑long screw securing the outer shell.

  2. aIWNDOoGePvNqSxn
    aIWNDOoGePvNqSxn
    SEgdxfDhvqxrnQPI

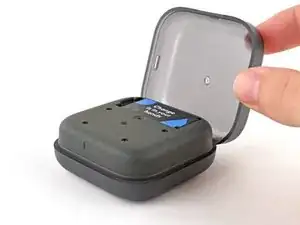

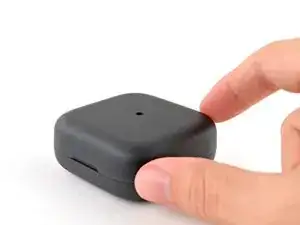

    • Flip up the bottom of the outer shell.

  3. RWES1s634itehsZd
    RWES1s634itehsZd
    ksUDoPSLObpfMLuy
    PAWpPqOGYXFtuTAL

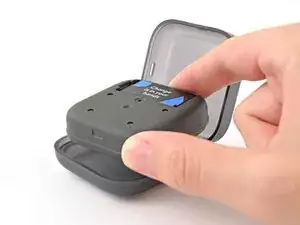

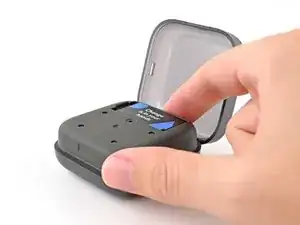

    • Lift the charging core out of the outer shell and remove it.

    • You're now left with the outer shell for replacement.

Conclusion

To reassemble your device, follow these instructions in reverse order.
