Dell Inspiron 11-3162 Palmrest Keyboard Replacement

Written By: Jared Johnson
  • Comments: 0
Dell Inspiron 11-3162 Palmrest Keyboard Replacement

Difficulty

Moderate

Steps

18

Time Required

10 - 15 minutes

Introduction

You'd want to follow this guide if you've attempted to troubleshoot your device following our steps. The Palmrest unit is a combined keyboard and touchpad, which makes it easy for us to replace!

  1. LVgLraILs1hL5NXt
    LVgLraILs1hL5NXt
    Nx6fbrxXsbNNEaY5

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Use tweezers to pry and remove the center screw cover on the back cover.

  2. kGWABiOmeOtEHMPO
    kGWABiOmeOtEHMPO
    jmbimuQo2JAYUkVi

    • Use a Phillips screwdriver to unscrew the nine 6.8 mm screws securing the back cover.

  3. qhfwVOolBCB6PTAa

    • Use a spudger to pry around the base edges of the back cover to loosen it from the laptop.

    • Do not fully remove the cover, as it is still attached to the laptop with cables.

  4. PrU1LVaSZjfDrKWP
    PrU1LVaSZjfDrKWP
    wKxZwBUUPX5hIRCf
    cbhbJJoBGDUSjxoF

    • If you are only replacing the battery, you can skip this step. Be careful not to strain the still-connected cable as you work.

    • Unlock the wide ZIF connector securing the flex cable.

    • To unlock a ZIF connector, use the tip of a spudger or your fingernail to flip up the small, hinged locking flap.

    • Pull the ribbon cable outwards to disconnect the back cover from the motherboard.

  5. TysZpsNroiKfHcuA
    TysZpsNroiKfHcuA
    cRL6yolh4PCYx5x2

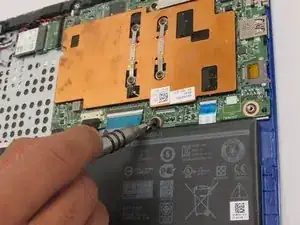

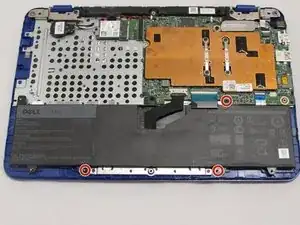

    • Use a Phillips screwdriver to unscrew the three 4 mm screws securing the battery.

  6. jaGPIeXbm3tMJZlo
    jaGPIeXbm3tMJZlo
    E1pjA6SC6cpWrfFT
    XAVGF6lP5OENqqNB

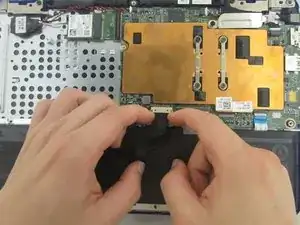

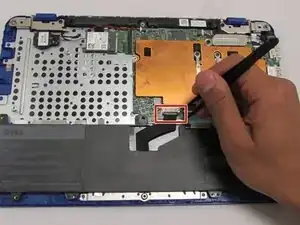

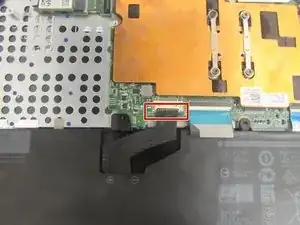

    • Use your fingers (or a set of tweezers) to disconnect the battery cable from the motherboard by gently pulling it towards the battery.

    • Pull parallel to the battery, not straight up.

    • Lift and remove the battery from its recess.

  7. M2gqTaHCSWKeNfVA
    M2gqTaHCSWKeNfVA
    WYK2MuF2HlN46gao

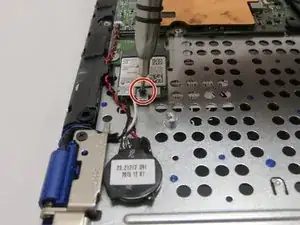

    • Use the phillips screwdriver with the PH000 head to unscrew the 3.8mm screw.

  8. vj1NEqoLKCeTNts4
    vj1NEqoLKCeTNts4
    RwZZZbXdeNEYroEo

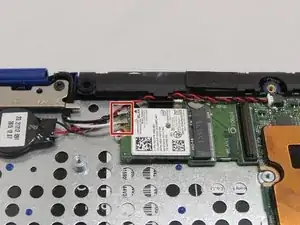

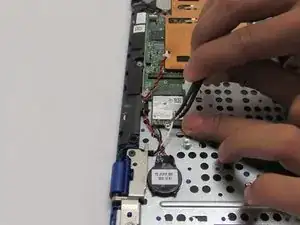

    • Using the tweezers, pull the white and black wires off of the WiFi Chip.

  9. 2ICikp1lxuhn2QRN

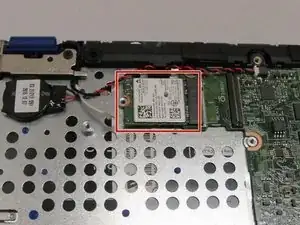

    • Pull out the WiFi Chip.

  10. SBaiqiME2cvxY33c

    • Use the tweezers to unplug the DC Jack.

  11. 1WNNKrYANHUoRjUx

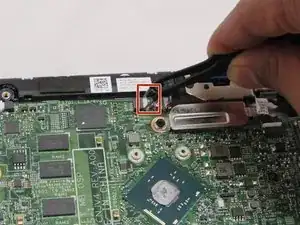

    • Use the tweezers unplug the Speaker Cable.

  12. MQKJZWpOkZhrxtOg

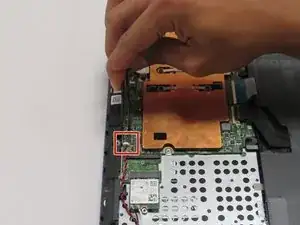

    • Use the tweezers to remove the CMOS Cable.

  13. BTJq21RuBAmYAE5f

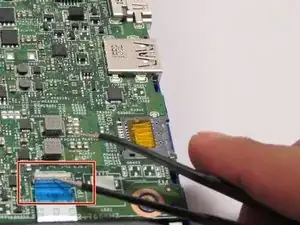

    • Use the tweezers to remove the Touchpad Cable.

  14. snlXxgG4dGcZLnqW
    snlXxgG4dGcZLnqW
    kICZROTeqthHWCSX
    Yxw3jHTrYAlGMCIB

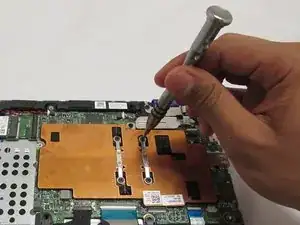

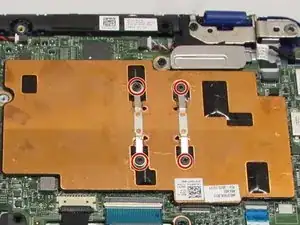

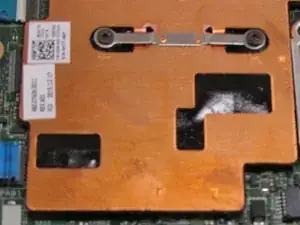

    • Use the phillips screwdriver with the PH0 to loosen the 4 screws and remove the orange plate.

  15. uRvQlDeQMbmPsdTe
    uRvQlDeQMbmPsdTe
    bKP5YP1p6GEsLYj4

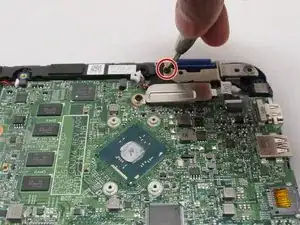

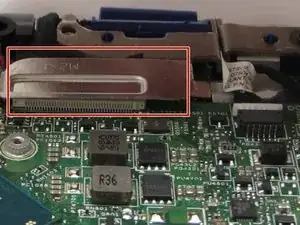

    • Use the phillips screwdriver with the PH00 head to unscrew the one 3mm screw. Then, remove the bracket.

  16. fN6WGXIpuC12JHWM
    fN6WGXIpuC12JHWM
    HwaUcSfZoEKHKnDq

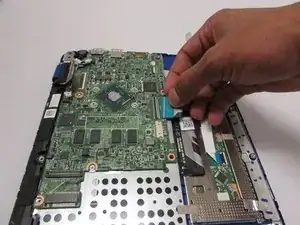

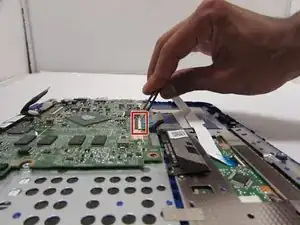

    • Remove the keyboard cable.

  17. m5vXWEeoDfLdZynX

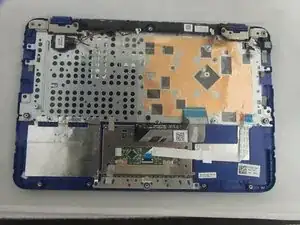

    • Remove the motherboard by gently lifting upwards from the edges.

  18. XWlwsqa4qZlQXVJP

    • Gently grip and pull the speaker to remove it.

    • Now you've removed the Palmrest keyboard!

Conclusion

To reassemble your device, follow these instructions in reverse order.
