Dell Alienware 15 R3 Battery Replacement

Written By: Jake Nelson
  • Comments: 4
Dell Alienware 15 R3 Battery Replacement

Difficulty

Moderate

Steps

7

Time Required

25 - 45 minutes

Introduction

This guide will show you how to both remove and replace the battery of your Dell Alienware 15 R3 laptop.

  1. ugaRUHPSOvfFUTvZ
    ugaRUHPSOvfFUTvZ
    YkXWVKpkLyJqZUEQ
    XA6lvmKoGmwOofCk

    • Before you begin, turn off the laptop and unplug the charger.

    • Flip the laptop over so that the backside is facing up.

    • Use a Phillips #00 screwdriver to remove the six 13.0 mm screws from the sides of the back case.

    • Use a Phillips #00 screwdriver to remove one 5.0 mm screw from the back of the laptop.

  2. fUNUpWMVqyjxpxFL

    • Use the opening tool to pry the back case from the computer.

    • Use the opening tool and work your way around the perimeter of the back case to gently release the clips.

    • Start from the black vent for an easier removal.

    • Lift the back case off of the laptop.

  3. 32WCjabHJbsVBp2Y

    • Use a Phillips #00 screwdriver to remove two screws from the side of the laptop.

  4. YNPiUCeWDkjAUuuZ
    YNPiUCeWDkjAUuuZ
    yDFDTJJc1UA3sLei

    • Use an opening tool to release the four tabs from the hinge cover and gently pry it off.

  5. 1BrTAjENIIRlxHMb
    1BrTAjENIIRlxHMb
    LLGQigK2VlVfaKQl
    yDnaadj4P4Eji3II

    • Use a Phillips #00 screwdriver to remove nine screws from the chassis.

    • Use a spudger or opening tool to remove the chassis and reveal the battery, fan, motherboard, and other components.

    The Wlan cable holds the base to the computer along with a little wire in the back left corner.

    darkdestroyer66 -

    Mine has 12 screws not 9. one card also to remove, (held by screw), and 2 sets of connectors

    Sean -

  6. LYqbssZA5LMVipTI

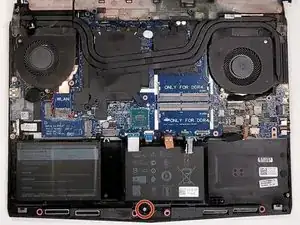

    • Use a Phillips #00 screwdriver to remove the 5.0 mm screw that is securing the battery to the palm rest assembly.

  7. WaZvTc34BU3o2BtC
    WaZvTc34BU3o2BtC
    RFtMSRBRSgZmIuqy
    1ytiCxG5EQGLCTj1

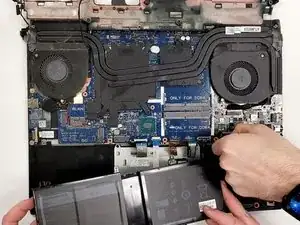

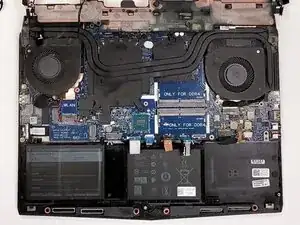

    • To the upper right of the battery is a connecting cable. Gently disconnect it from the palm rest assembly.

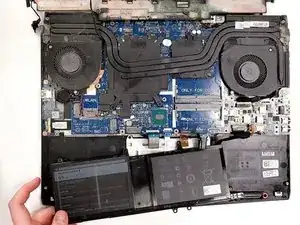

    • Confirm nothing else is connected to the battery and lift the battery completely off the palm rest assembly.

    While I did finish my battery replacement using this guide, I had to remove around 15 screws to release the midframe, not the nine listed. This is likely due to the source machine being a different h/w version than mine. It still didn't take long and wasn't much more difficult. I swapped a 68Wh dead battery with a 99Wh version. Now it lasts around 7 hours on a charge. Much better :D

    Tyler Regas -

Conclusion

To reassemble your device, follow these instructions in reverse order.
