Canon PowerShot SD400 LCD Replacement

Written By: Yi Huang Ke
  • Comments: 2
Canon PowerShot SD400 LCD Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

This guide will provide you with step-by-step instructions on how to replace a faulty LCD screen for a Canon PowerShot SD400. The LCD, or liquid crystal display, is a flat monitor that displays images. The LCD may need to be replaced if it has cracks, discolored pixels, spots, blobs, flickering, or if there's no image signal. Before you begin, ensure that the camera is powered off and remove the battery.

  1. nNBRdKPM6ZmOBdeS
    nNBRdKPM6ZmOBdeS
    HsnUEYEgTM5v6XfG

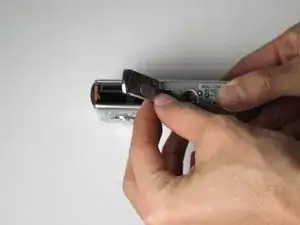

    • Slide the battery cover open (indicated by the blue box).

  2. i2DEEOoSUZfIfW5S

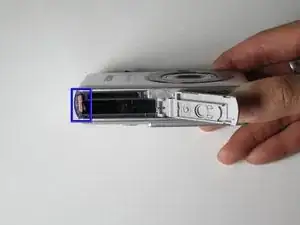

    • Push in the orange clip (indicated by the blue box) to eject the battery.

  3. wqmNnNL3hycfCF5I

    • Insert the charged battery back into the slot (indicated by the blue box).

    • Close the cover.

  4. 3rIDxXU3ALDNIHJi
    3rIDxXU3ALDNIHJi
    QgwEXvgmTCyQsVGr
    KBcPsvAWg5hCLAcr

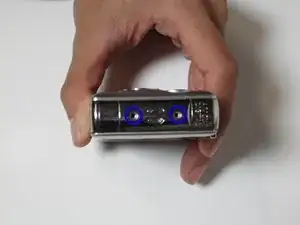

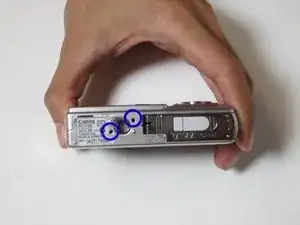

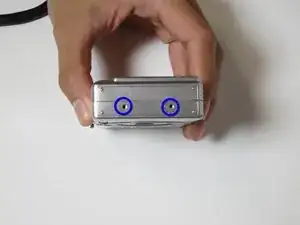

    • Locate these 6 screws that need to be removed to open the camera’s housing. These screws can be found on the bottom and both sides of the camera.

  5. stKovRTPJQZKL6MA
    stKovRTPJQZKL6MA
    HLqpvLQyOuua3ugC
    cHvWoZlhVuFmQ4Tk

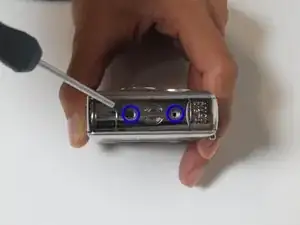

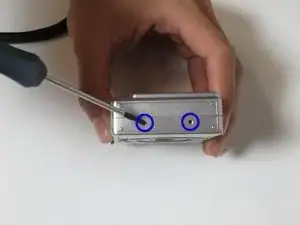

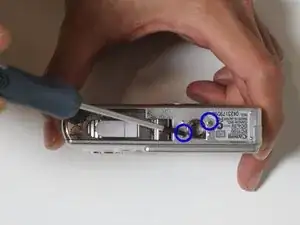

    • Using the screwdriver, carefully remove the exterior screws and set them aside to avoid misplacing them.

  6. coOeDAttd64I1GOl
    coOeDAttd64I1GOl
    vUUnUpigr2GoOktq

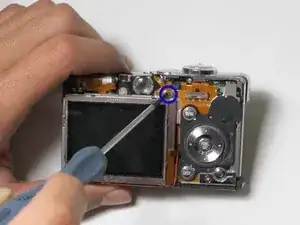

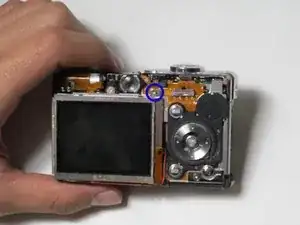

    • Locate the interior screw positioned above the top right of the LCD screen.

    • Remove the screw using the screwdriver.

  7. fS5uXIkKugJQCDtM
    fS5uXIkKugJQCDtM
    GofFlfTe2KqNBLum
    K6q2tKJPw6QR2JMT

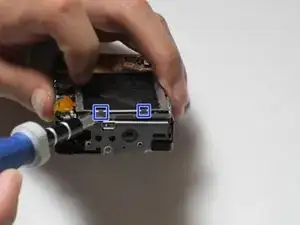

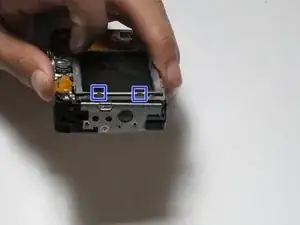

    • Locate the two clips on the left side of the LCD screen.

    • Carefully wedge a flat-head screwdriver under the two clips of the LCD screen.

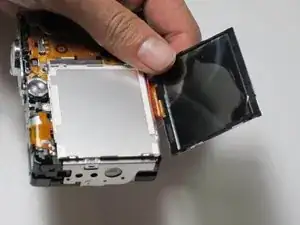

    • Slowly lift the screen using the flat-head screwdriver.

    • Potential for device damage Lift the screen gently to avoid any damage.

    Then what what to do next

    Keeneh Weah Cisco -

Conclusion

To reassemble your device, follow these instructions in reverse order.
