2023 Toyota Corolla Cabin Air Filter Replacement

Written By: omar vasquez
  • Comments: 0
2023 Toyota Corolla Cabin Air Filter Replacement

Difficulty

Easy

Steps

6

Time Required

35 seconds - 2 minutes

Introduction

This guide will show you how to replace the cabin air filter in a 2023 Toyota Corolla. This is important because cars get dust inside them and when the cabin air filter is dirty, the driver and the passenger are inhaling all the dust that the cabin air filter has.

Change the cabin air filter every 10,000-15000 miles on your car.

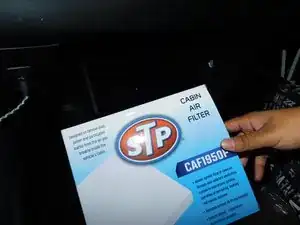

  1. fRmq2CcPQ4IJOHkx
    fRmq2CcPQ4IJOHkx
    KoTaufK4s2Z63UrN
    ToPuo3P4FgDaXZhV

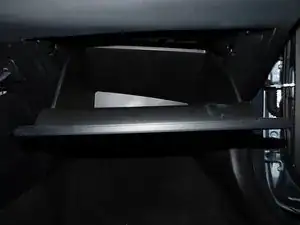

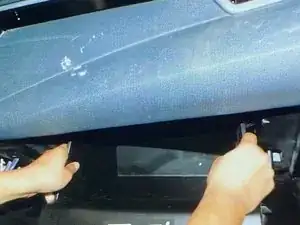

    • Open the glovebox.

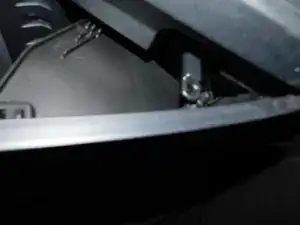

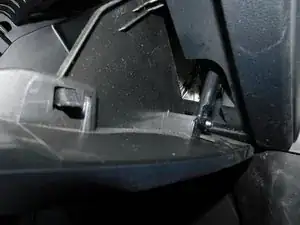

  2. 1YvOZKtdXDXEgsQr
    1YvOZKtdXDXEgsQr
    M2NCFAqmvJbUN2bP
    hR4tsLpDR4jva5Vr

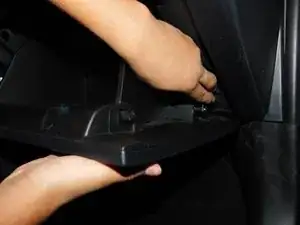

    • Unhook the dampener arm to see the cabin air filter.

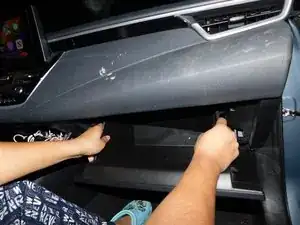

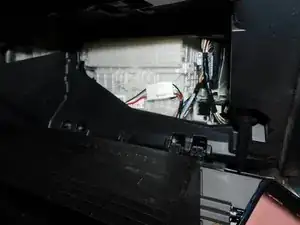

  3. 4eYQRAWsBRlKFuBp
    4eYQRAWsBRlKFuBp
    qIl1Ho5Ir3eT13NI

    • Push in both sides of the glove box to lower the glove box.

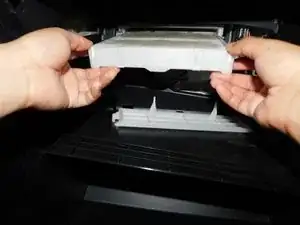

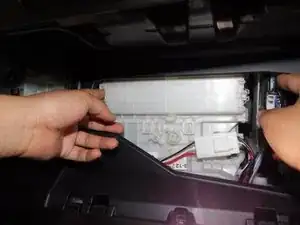

  4. FeOKJcRhsiZJJKMd
    FeOKJcRhsiZJJKMd
    1UQ2UHOjr2g2JmD1
    dZi2vHWgVQmn4kEe

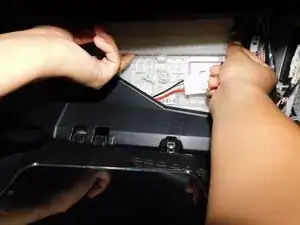

    • Unclip both sides of the housing cover and remove the filter frame, pulling outwards.

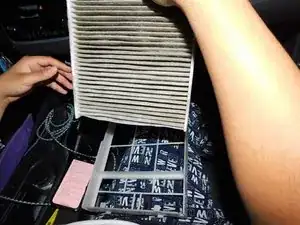

  5. EddioFhHPdUGwhk1
    EddioFhHPdUGwhk1
    JdqwjQlPDVTdbobU
    qNKHRgasiyXY6GBf

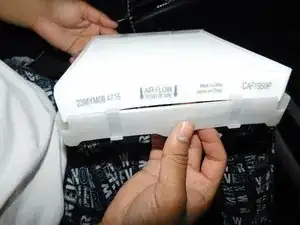

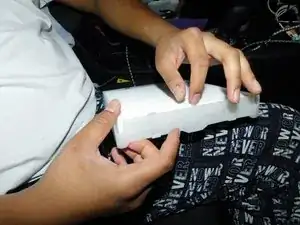

    • Remove the old filter and install the new cabin air filter with the air flow indicating down.

    • Reinstall the cabin air filter and reclip the housing door.

  6. BDqksFcpyKsdNP6p
    BDqksFcpyKsdNP6p
    ReJDMdTZj5IOrf2l

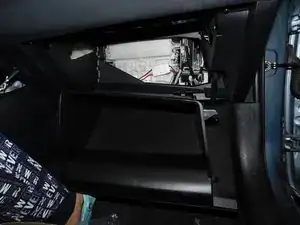

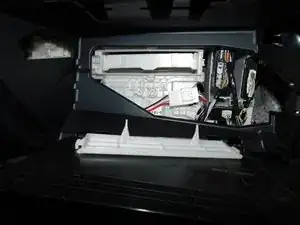

    • Reinstall the stoppers and the dampener arm, then close the glovebox.
